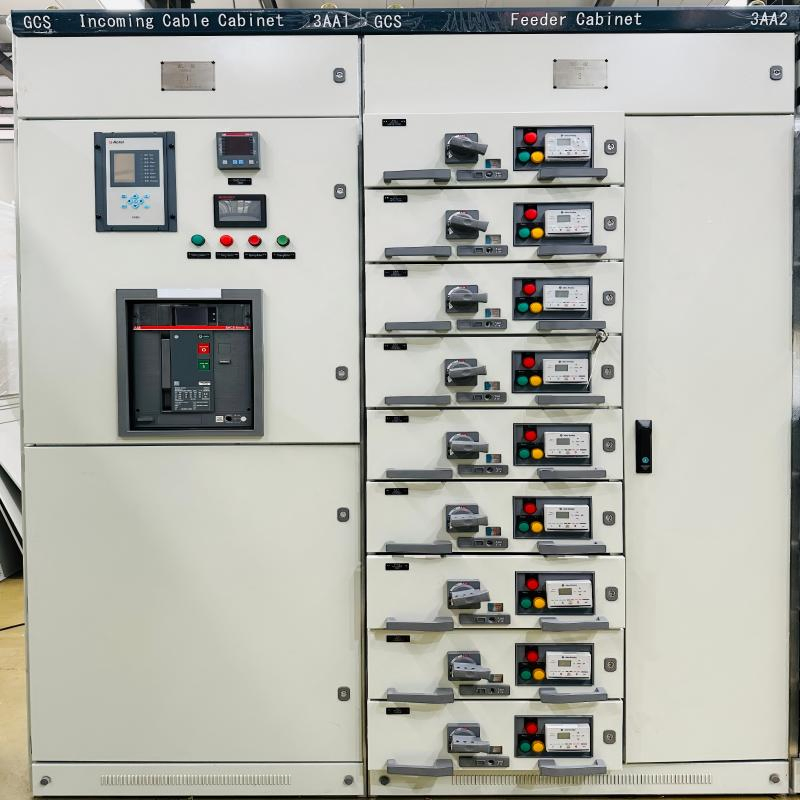

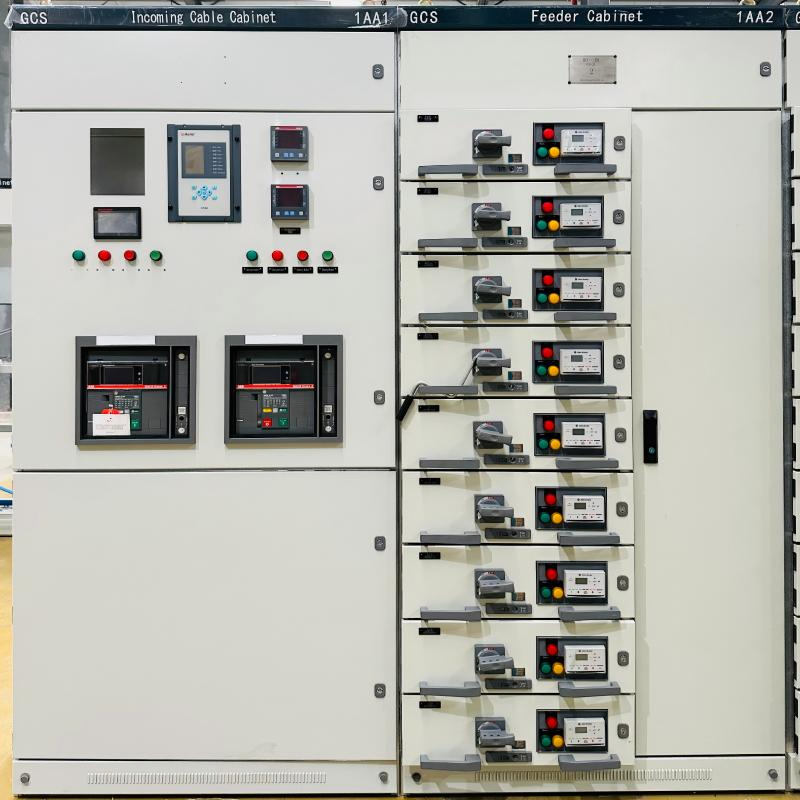

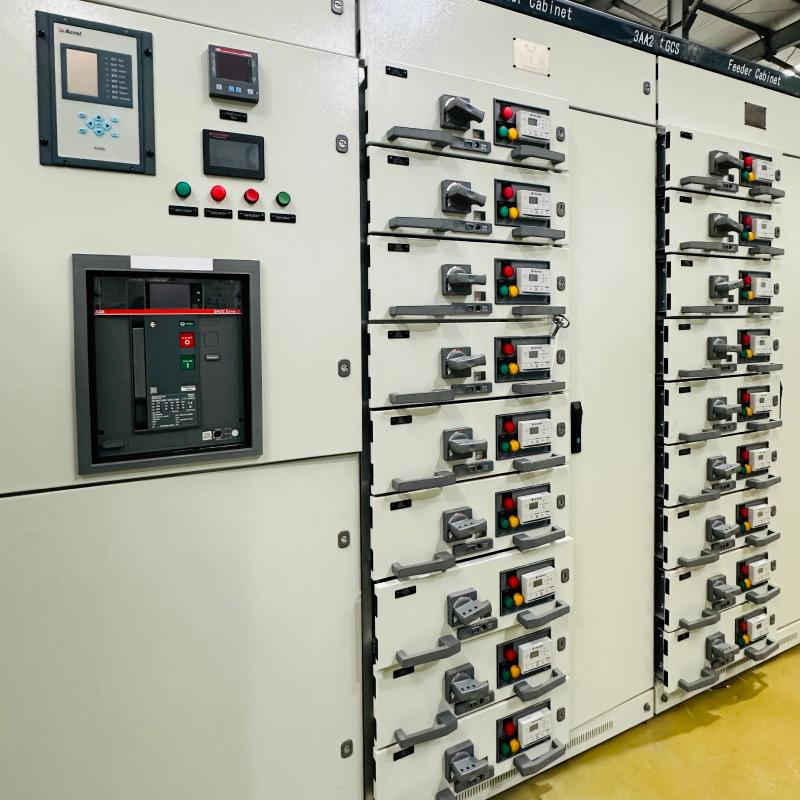

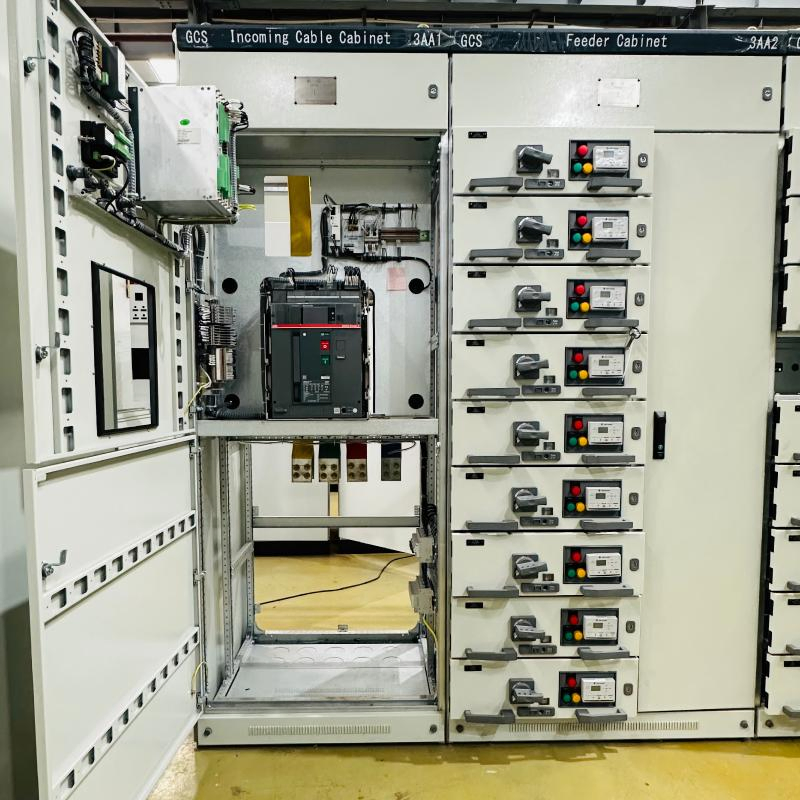

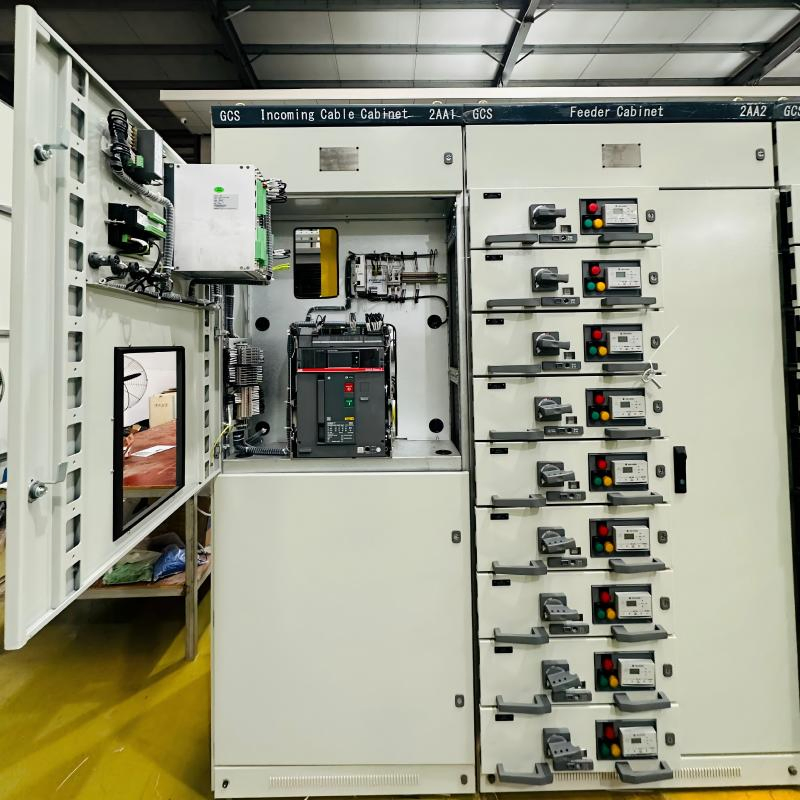

Refinery High-Safety Power Cabinet Set

Customization: Available
Type: Power
Structure: Fixed Board

Product Description

Basic Info.

Certification
ISO9001:2000, VDE, CCC, CE
Form
All-packaged Type
Operation Voltage
Low Voltage
Size
Customizable
Application Range
Industry, Factories, Buildings, New Energy, etc
Shell Material
Customizable
Shell Protection Grade
IP30-IP66
Brand Components
ABB, Chint, Siemens, Omron, Delixi, etc
Rated Voltage
AC 380V/220V, 50Hz
Rated Current
100A - 2000A
Insulation Voltage
660V
Busbar System
Copper Bar (Tmy)
Installation
Floor-Mounted, Wall-Mounted
HS Code
8537109090

Packaging & Delivery

Package Size
80.00cm * 45.00cm * 200.00cm
Gross Weight
100.000kg
Transport Package
Standard Export Wooden Box with Pallet

Product Description

Power Distribution Cabinet
Professional Complete Set of Power Distribution Cabinet Customization and Engineering Supporting Services

We are deeply engaged in the industrial electrical field, focusing on the core business of customizing complete sets of power distribution cabinets. We provide new factory supporting services, old factory renovation and special scenario adaptation services. With precise customization, efficient delivery and reliable quality, we empower customers to achieve safe commissioning and cost reduction & efficiency improvement.
Core Business and Supporting Services

Focusing on full-scenario needs, we offer three core services: new factory construction supporting (power planning adaptation, cabinet customization); old factory power distribution renovation (old cabinet replacement, energy efficiency optimization); and special scenario customization (high/low temperature resistance, corrosion resistance for chemical or new energy industries).

Core Advantages

We manufacture a full range of high and low voltage switchgear components and distribution boxes. We support a minimum order quantity of 1 unit, achieve 30-day fast delivery, and provide full-process support from design to delivery.

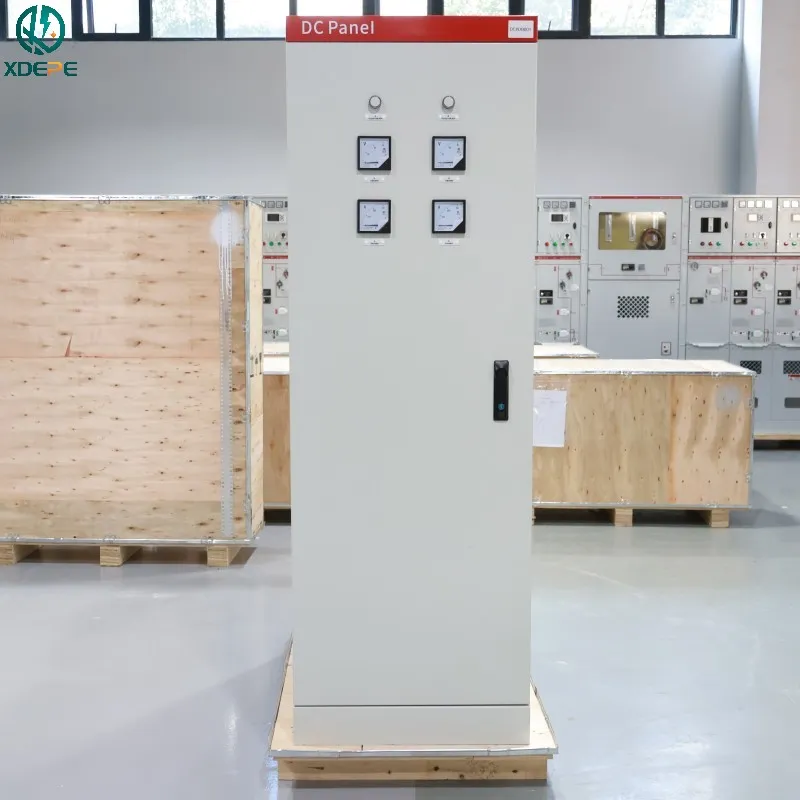

Cabinet Detail 1

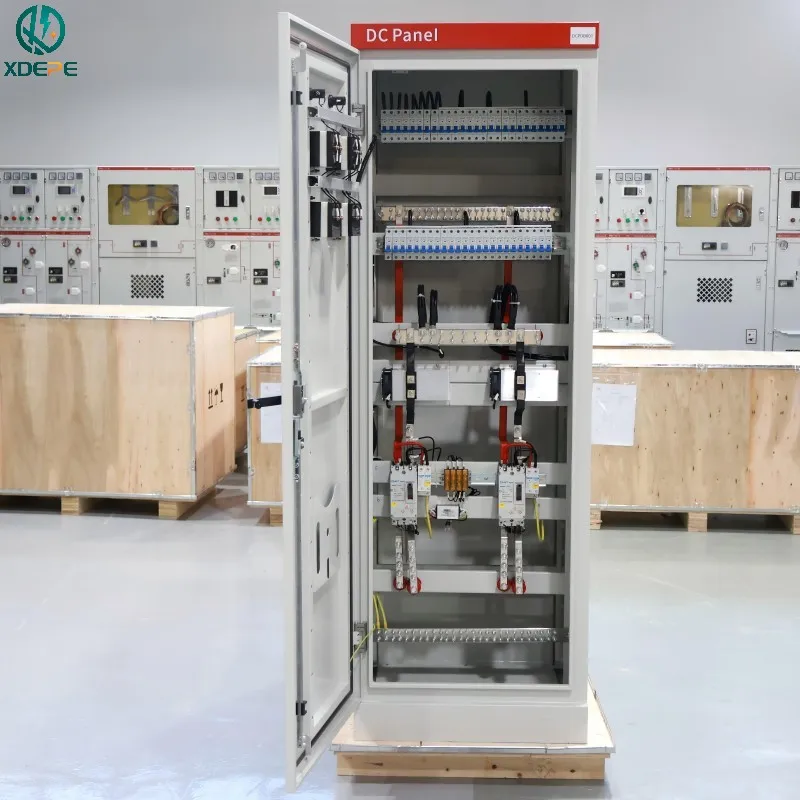

Cabinet Detail 2

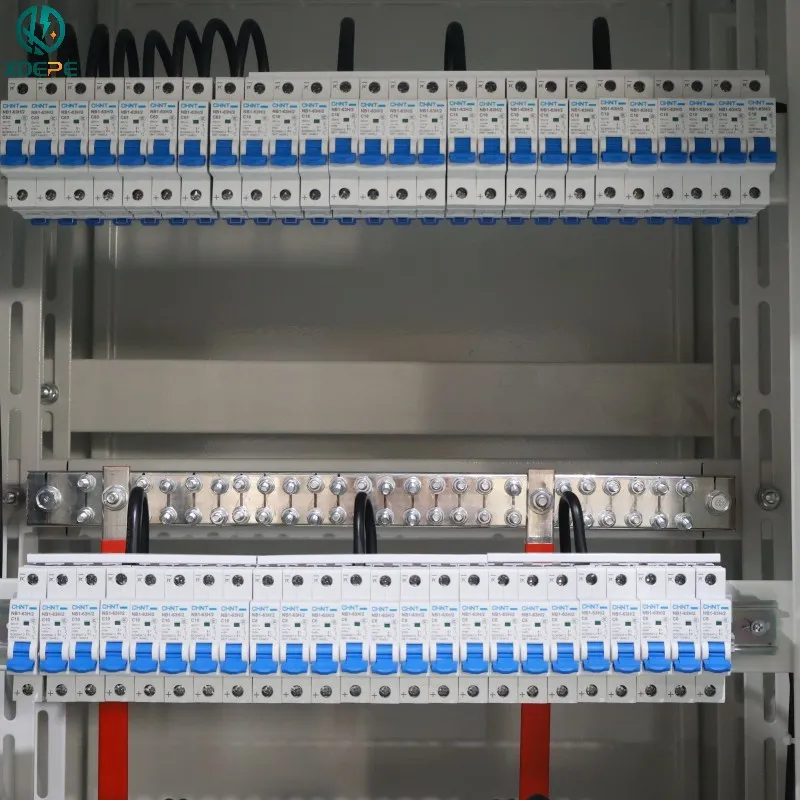

Cabinet Detail 3

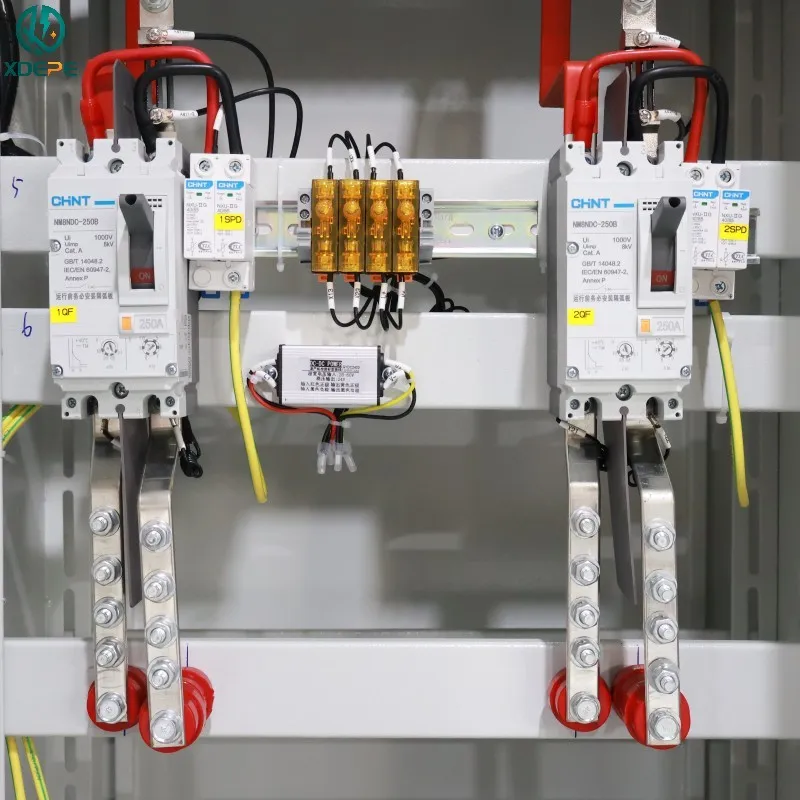

Cabinet Detail 4

Communication Sites DC Power Distribution Cabinet

Internal Structure: This DC distribution panel, tailored for communication sites, uses industrial-grade components. Its main circuit is equipped with DC circuit breakers compatible with 1000V DC systems, providing dual protection against overloads and short circuits. It integrates surge protectors to resist lightning strikes, paired with DC voltage/ammeters for real-time status feedback.
Structure Detail
Internal Wiring
Application Scenarios

Core applications include optical fiber communication base stations, power dispatching communication rooms, relay stations, and remote monitoring equipment. It is suitable for any outdoor communication cabinets requiring centralized DC power distribution and safety protection.

Technical Parameters

Specific Parameters Detailed Description
Protection LevelUsually IP30, IP40, IP54
Cabinet MaterialHigh-quality cold-rolled steel (1.2-2.0mm)
External DimensionsHeight 2200mm (Customizable)
Rated Working Voltage380V, 400V, 660V
Rated Insulation Voltage660V or 1000V
Rated Frequency50Hz or 60Hz
Rated Current of Busbar630A to 5000A
Short Circuit Withstand25kA, 31.5kA, 40kA, 50kA
Drawer Size1/2 unit to 3 units
Mechanical Lifespan≥ 2000 times

Factory Production Showcase

Production 1
Production 2
Full Set Cabinet

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a manufacturer. Our factory and headquarters are located in China, with 18 years of experience in the electrical automation industry.
What products can I buy from you?
We offer complete sets of low voltage distribution cabinets, drawer cabinets, distribution boxes, electrical cabinets, power cabinets, ATS cabinets, and high voltage switch cabinets.
How can I place an order?
Please provide detailed technical specifications or a Single Line Diagram (SLD). You can contact our sales staff via email or messaging tools for a formal quotation.
How is the price calculated?
Prices are determined based on specifications, component configuration, and order quantity. Contact our team for an accurate quotation based on your needs.
What is the lead time for production?
Quotations take 2 days. Samples generally take 15 days, while mass production takes approximately 25-30 days depending on the items and quantity.
What are the payment terms?
We accept various methods including T/T and L/C. Typically, a 30% deposit is required, with the remaining 70% balance due once the goods are ready.
