Basic Info.

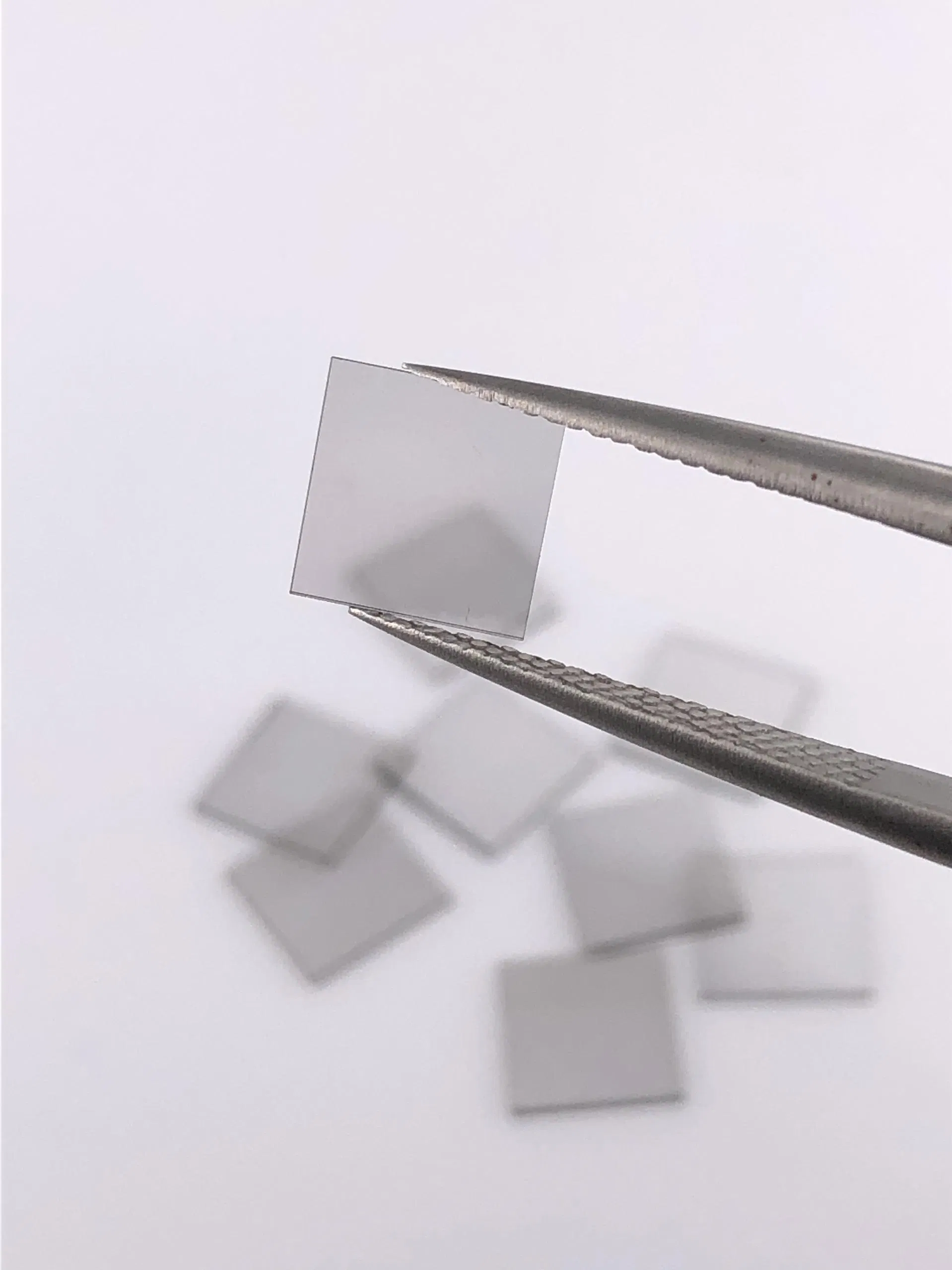

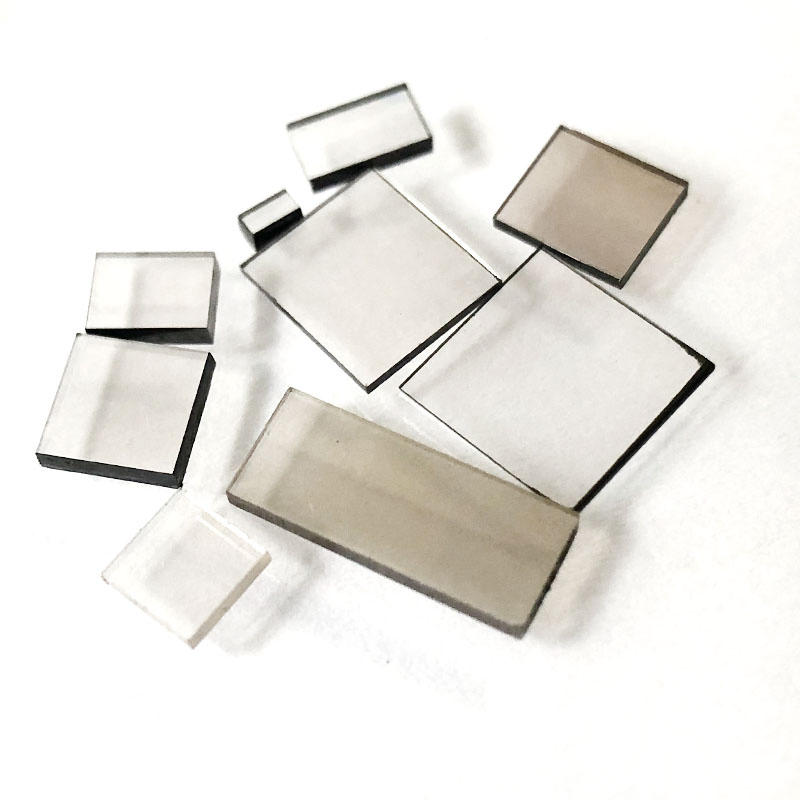

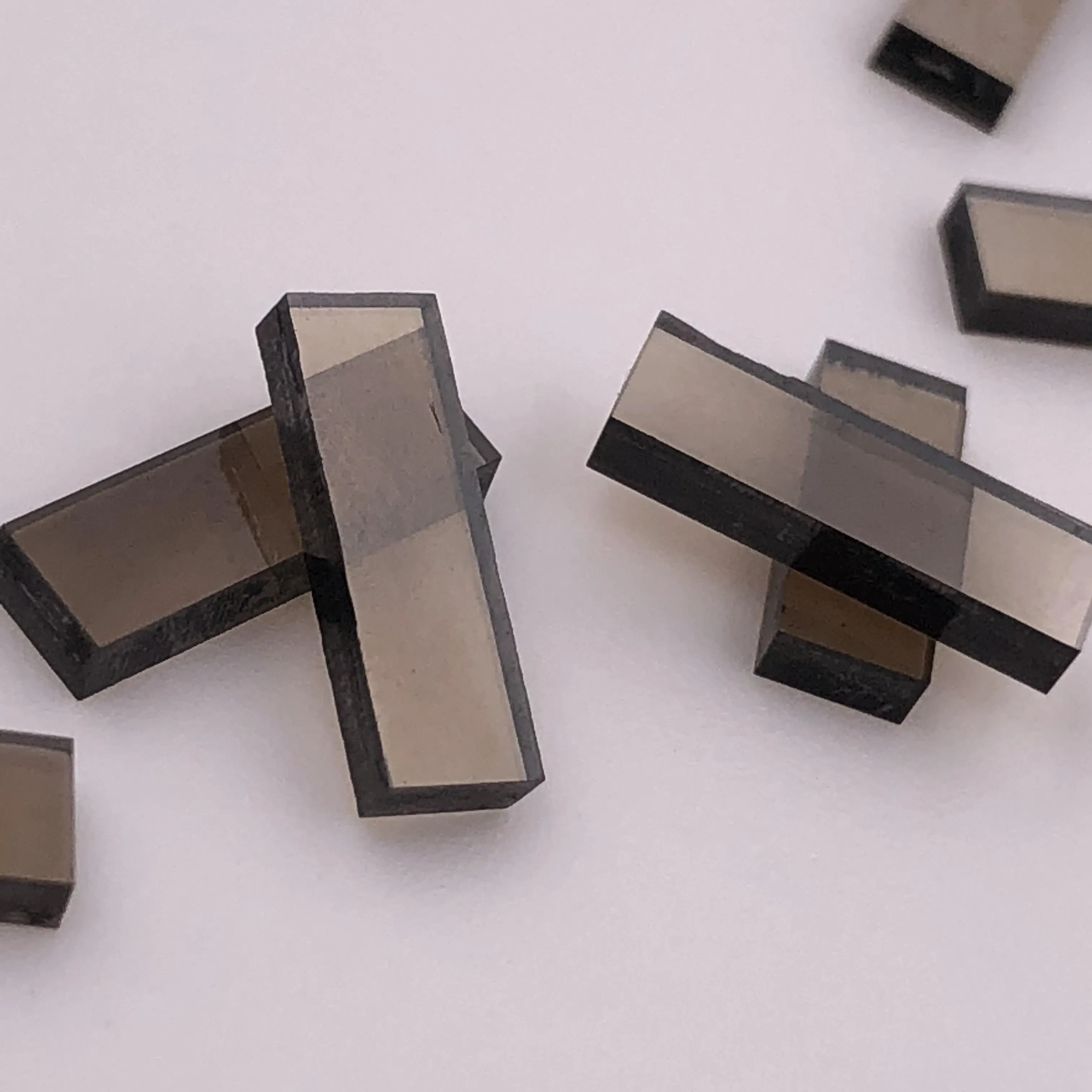

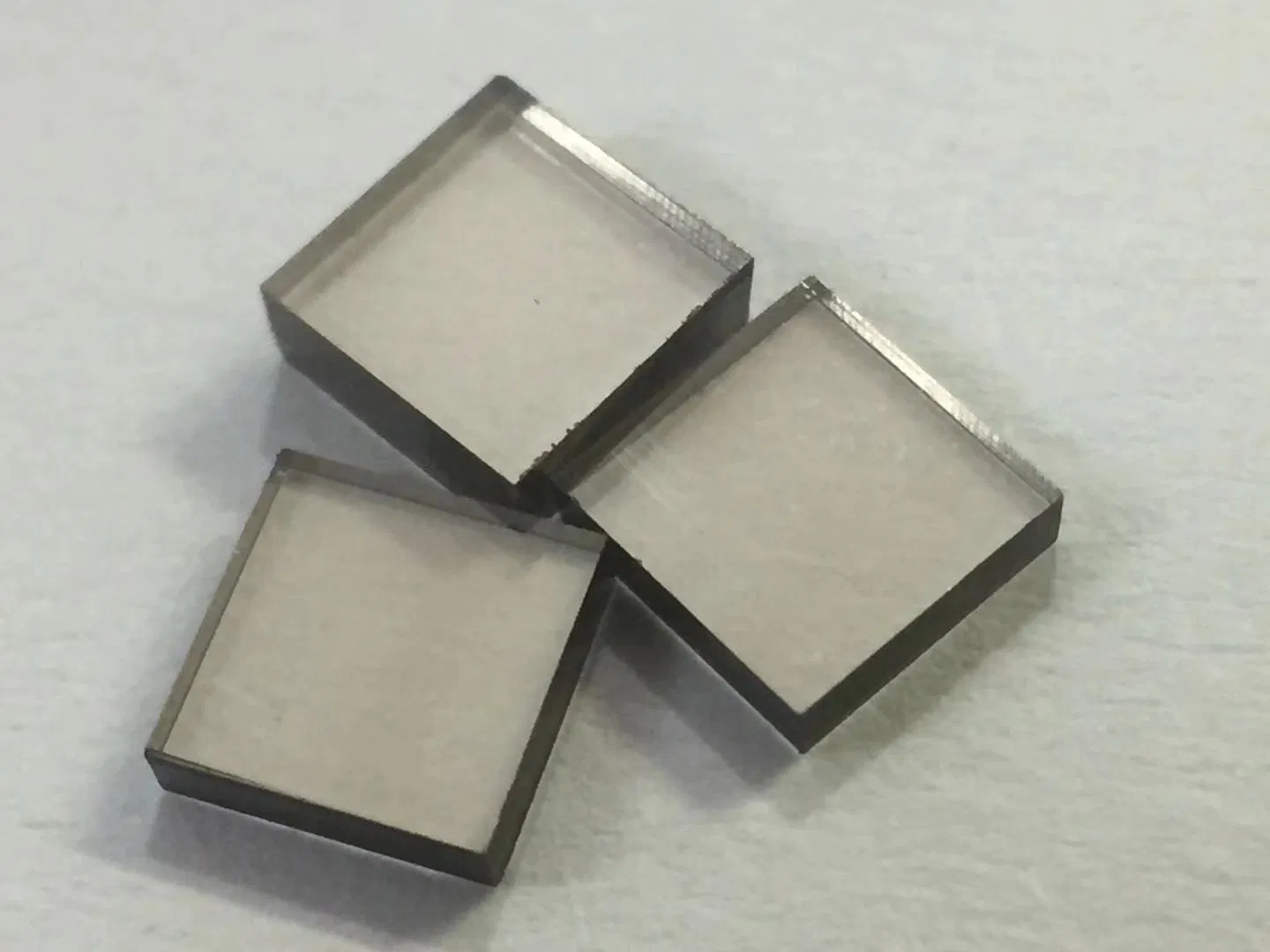

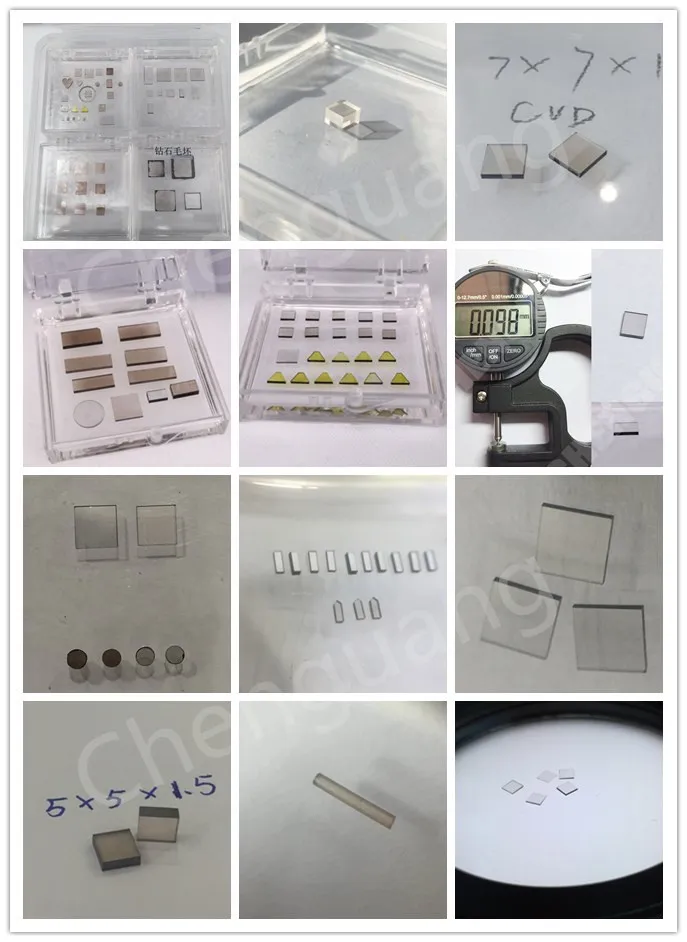

CVD Diamond Heat Spreaders
MONO / SINGLE CRYSTALLINE
Size Range: 1x1 mm to 8x8 mm, 10-12 mm
Thickness: 0.3 mm to 3 mm
Grade and Application
- Industry: Mechanical applications, Making Wheel Dresser, die Blank, etc.
- Electronic: Quantum optics, radiation detector, etc.
- Optical: Precision tools, window, anvil, sensor, etc.
- Thermal/Mechanical: For conventional tools.
Surface Specifications
- As Grown or Laser Cut
- Polished (Ra < 5nm, Flatness < 1 fringes @ 633nm)
- Lapped (Ra < 200nm, Flatness < 1 fringes @ 633nm)
Type/Orientation & Edges
- Top (100), Customized for Scalpels (based on 2 and 4 point configuration)
- Customized shapes (based on given designs)
- Laser cut and both sides polished

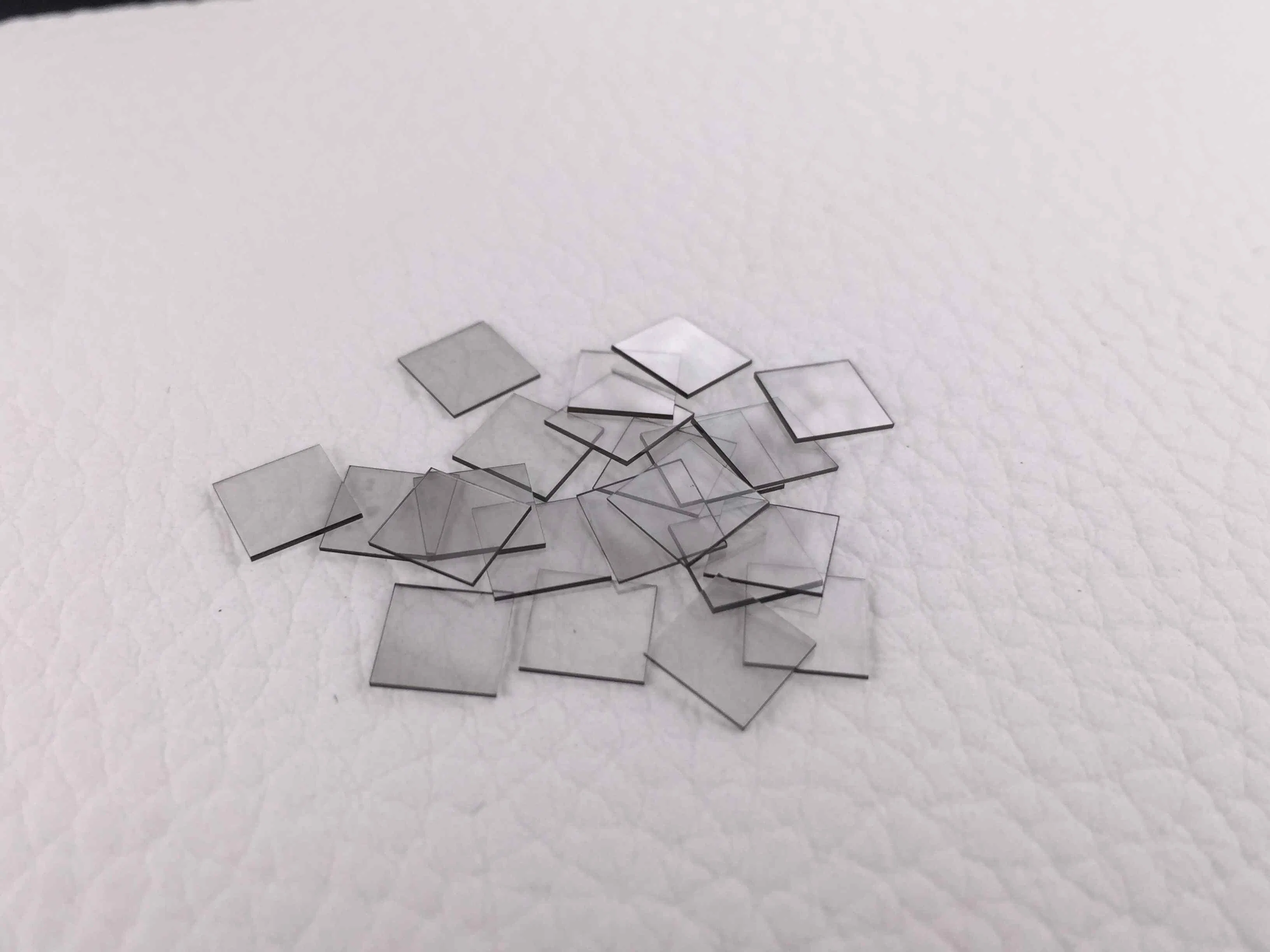

Available Sizes of CVD Diamond Plates:
1*1*1mm , 2*2*1mm , 3*3*1mm , 4*4*1mm , 5*5*1mm , 6*6*1mm, 7*7*1mm , 8*8*1mm , 9*9*1mm , 10*10*1mm , 11*11*1mm , 12*12*1mm
Thickness: 0.1mm to 3mm (Customized shape and size available)

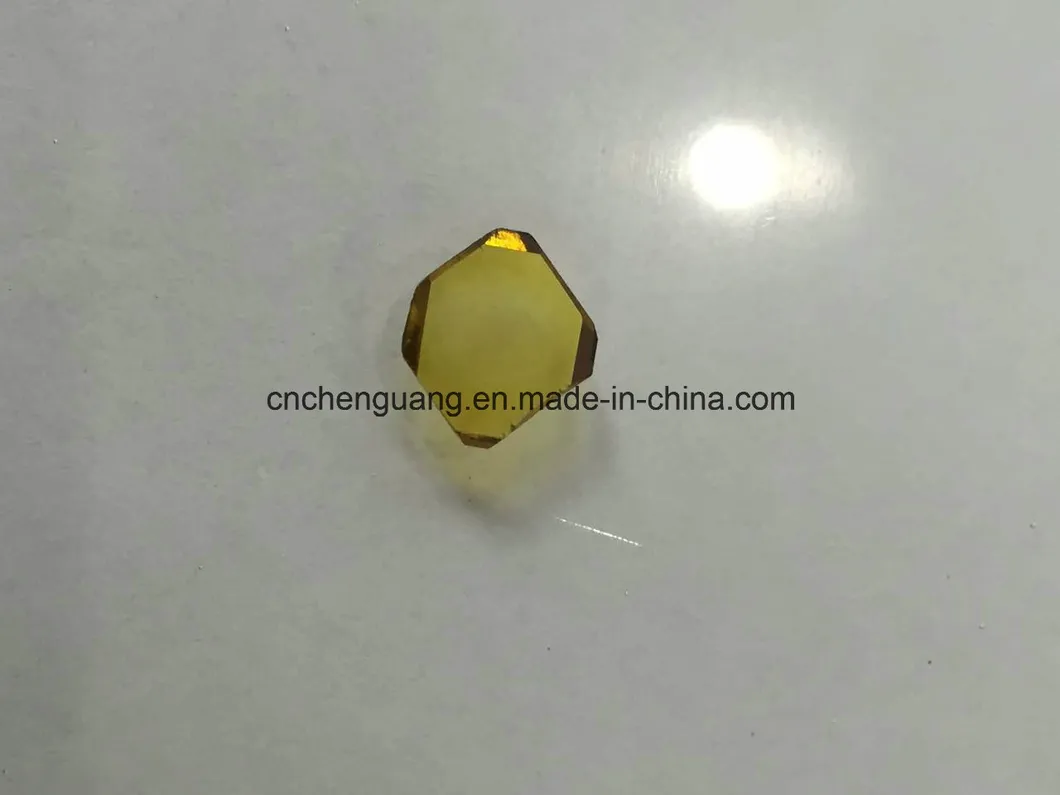

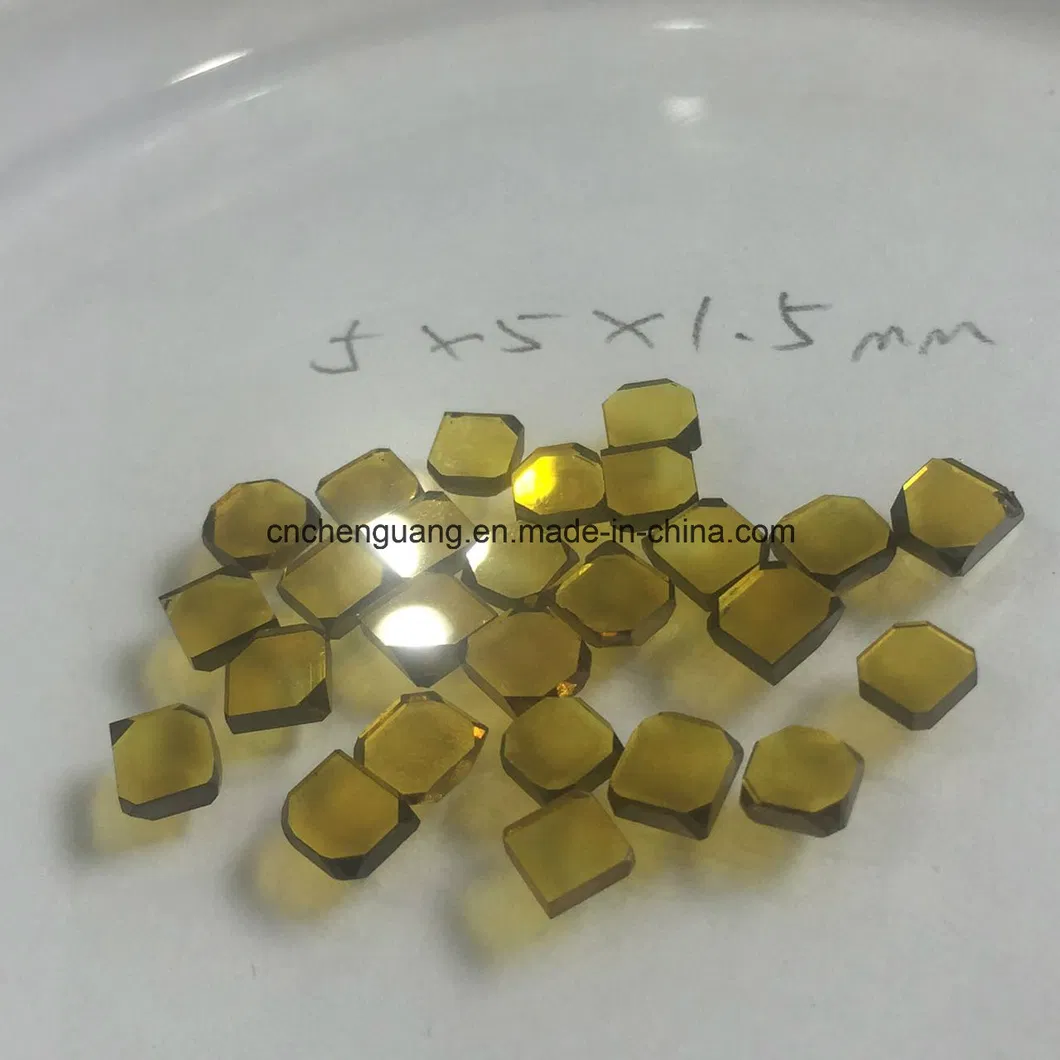

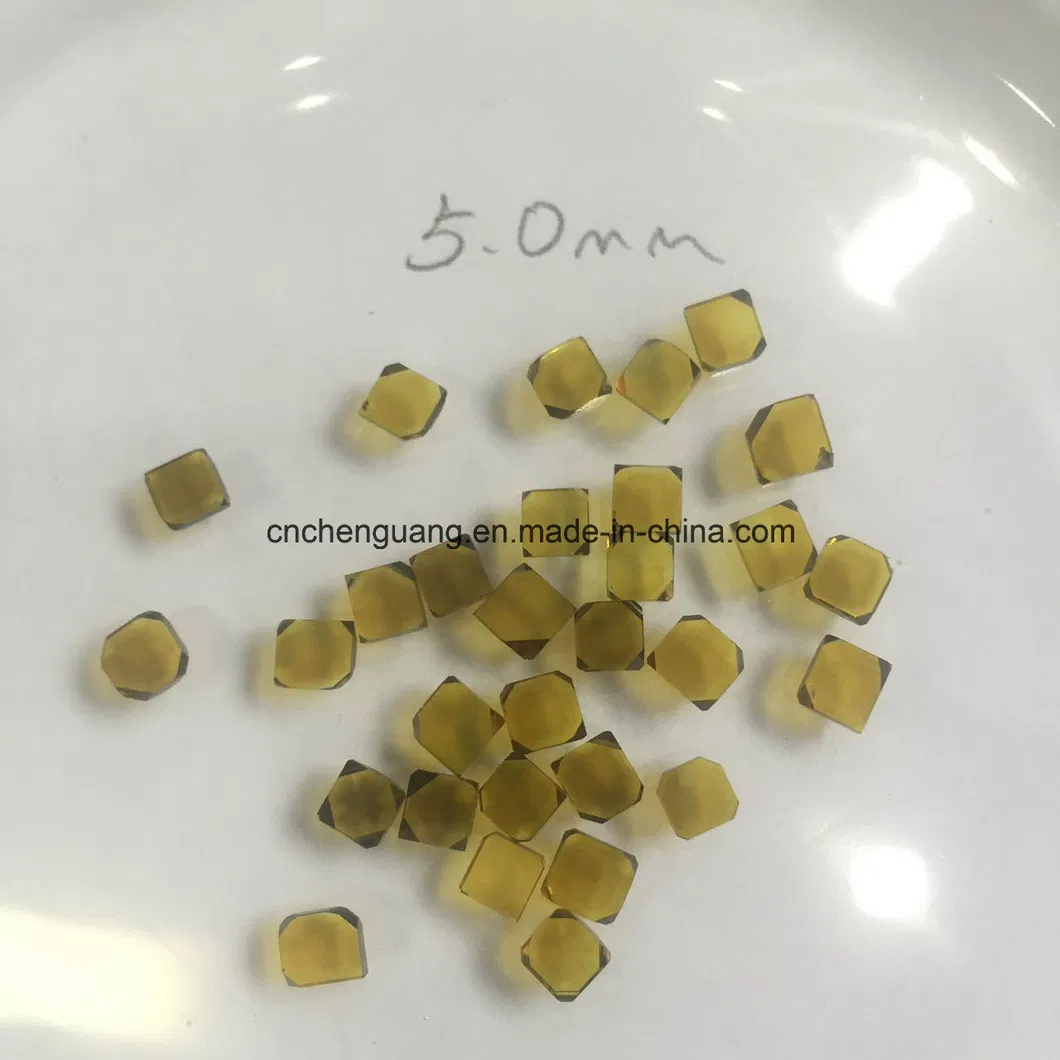

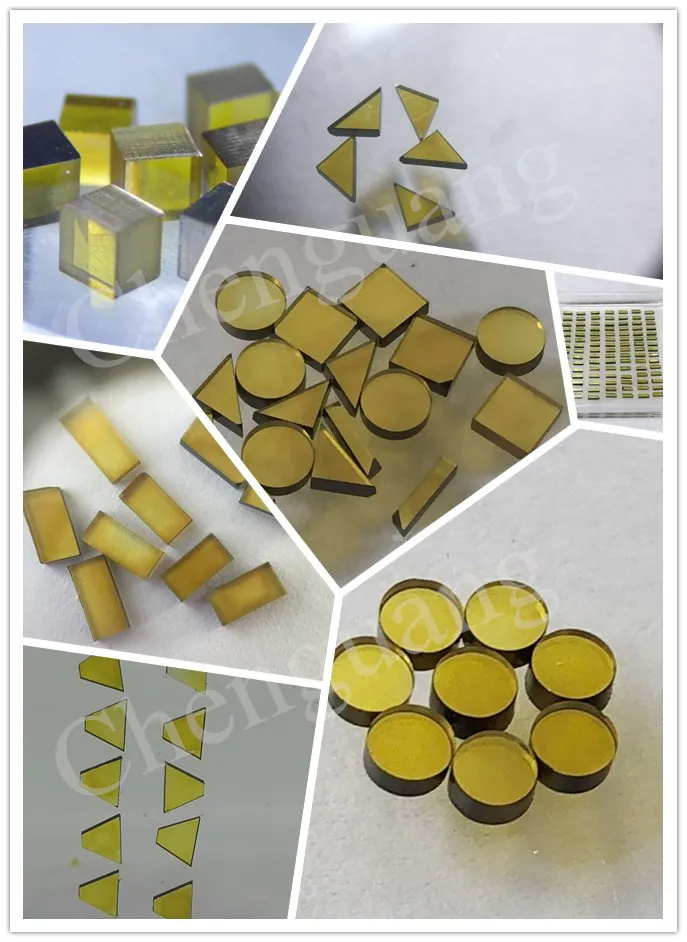

HPHT DIAMOND PLATE
Available Sizes:
2.0x2.0x1.1mm, 2.5x2.5x1.1mm, 3.0x3.0x1.1mm, 3.5x3.5x1.1mm, 4.0x4.0x1.1mm, 4.5x4.5x1.1mm, 5.0x5.0x1.1mm, 5.5x5.5x1.1mm etc.
Thickness: 1.1mm to 1.7mm
Shapes: Round, Square, Rectangle, Hexagonal, etc.
Advantages & Features
- Produced by high-quality HPHT or CVD processes.
- Hardness: Moh's 10 (Matches natural diamond, passes diamond test pen).
- Transparency: White or yellow color, high strength, low impurity.
- Thermal Stability: High impact resistance and great thermal stability.

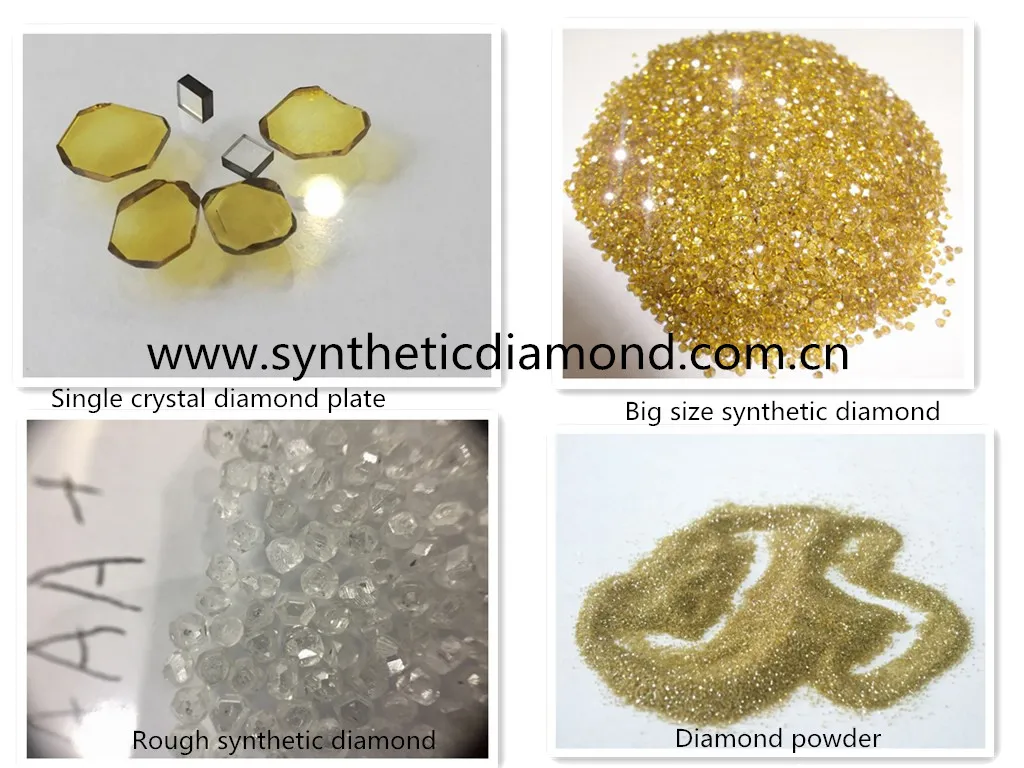

Synthetic Diamond Grit & Powder Classifications
| 1. Synthetic Diamond Grit |
16/18 to 325/400 (D1180 - D46) |
| 2. Large Size Crystals |
1mm to 5mm crystals; Plates up to 5.5x5.5x1.0mm |
| 3. RVD Crushing Material |
100/120 to 500/600 |
| 4. Diamond Micro Powder |
Polishing (0-0.5 to 3-6); Lapping (4-8 to 10-20); Grinding (12-22 to 36-54) |
Ordering Process
1
Specify usage application to receive the most suitable size and grade recommendation.
2
Small samples provided for testing purposes.
3
Confirm bulk requirements after successful sample testing.
4
Standard delivery via Express or Air transport.
5
Typical delivery time: 5-7 days after deposit confirmation.
General Applications
Synthetic diamonds are utilized in a wide range of industries: Saws, dressing tools, drilling tools, electroplated tools, scraping tools, metal bond abrasive wheels, stone/ceramics/glass processing, and mechanical pressing.
Frequently Asked Questions
Q1: What is the difference between HPHT and CVD diamond plates?
HPHT (High Pressure High Temperature) diamonds are grown by mimicking natural conditions, while CVD (Chemical Vapor Deposition) diamonds are grown from a hydrocarbon gas mixture. Both offer Moh's 10 hardness and are suitable for different industrial applications like heat spreaders or cutting tools.
Q2: Can I order customized shapes and sizes?
Yes, customized shapes including round, square, rectangle, and hexagonal configurations are available based on your specific designs and industrial requirements.
Q3: Are these diamonds suitable for optical applications?
Absolutely. Our optical grade diamond plates are ideal for precision tools, optical windows, sensors, and anvils due to their high transparency and low impurity levels.
Q4: How do I choose the right grit size for my tools?
Selection depends on your application. Coarser grits (e.g., 16/18) are for heavy material removal, while micro powders (e.g., 0-0.5) are used for precision polishing and lapping.
Q5: Will these diamonds pass a standard diamond tester?
Yes, since these are chemically and physically identical to natural diamonds with a hardness of 10 on the Mohs scale, they will pass any standard thermal diamond testing pen.
Q6: What is the standard lead time for delivery?
Typically, orders are processed and delivered via air or express transport within 5 to 7 days after the confirmation of your deposit.
