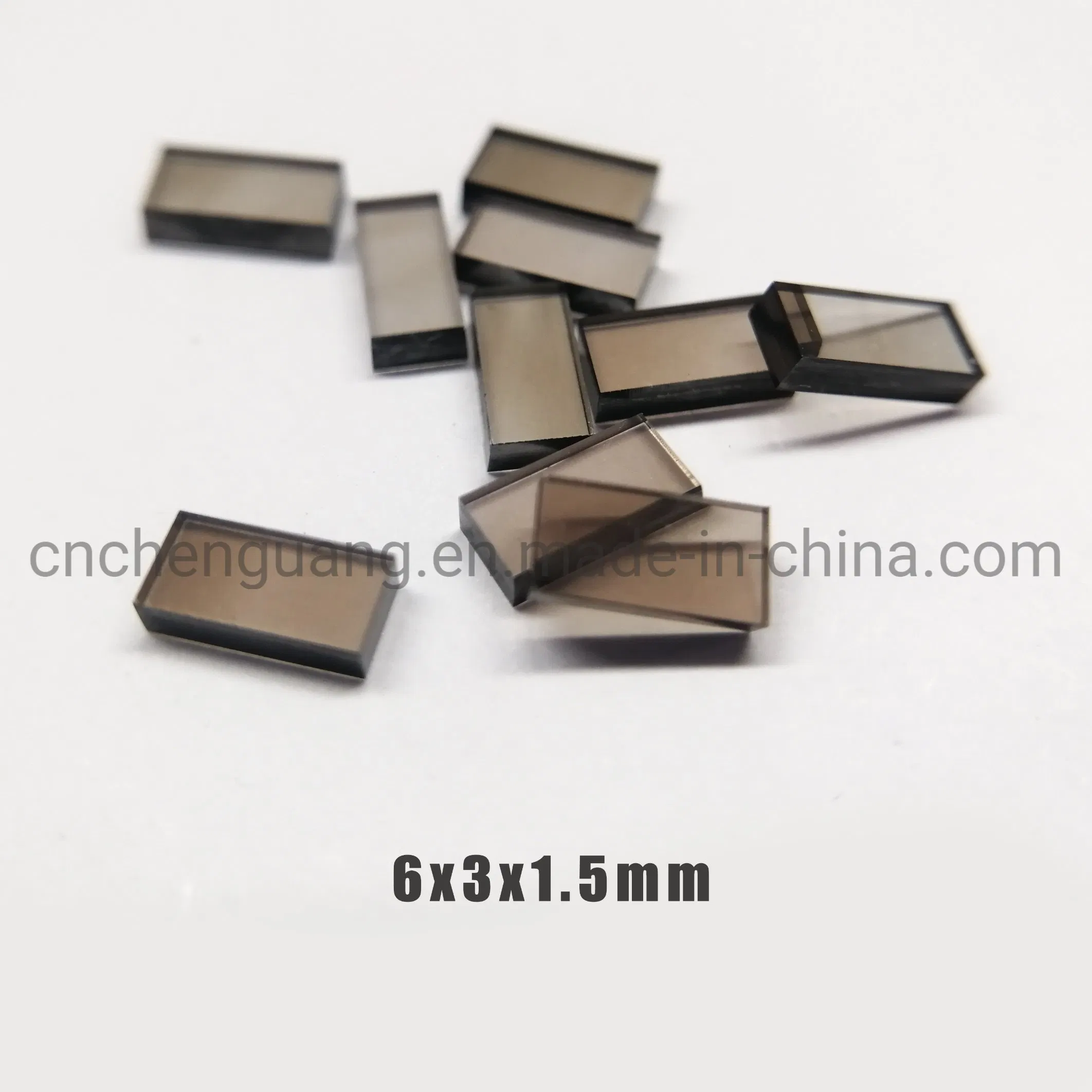

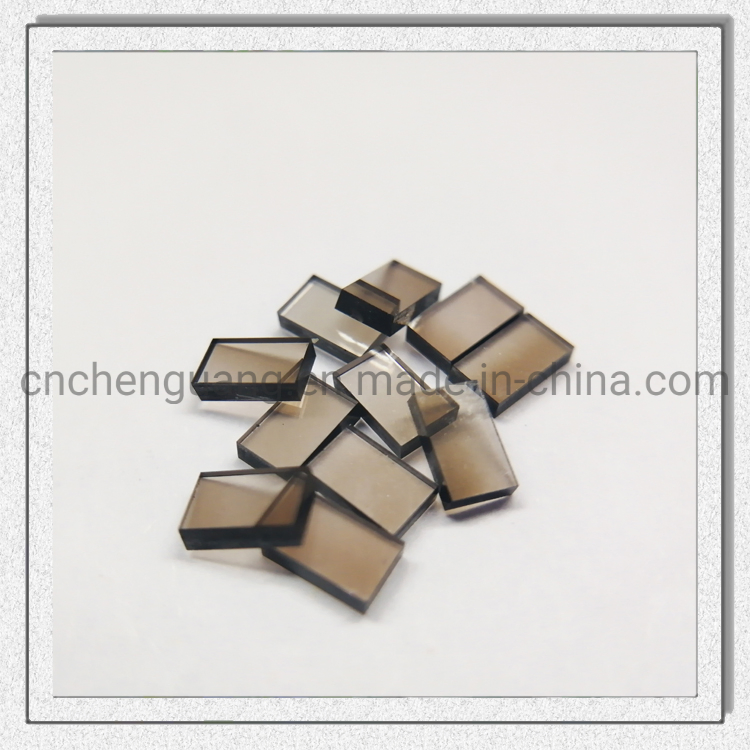

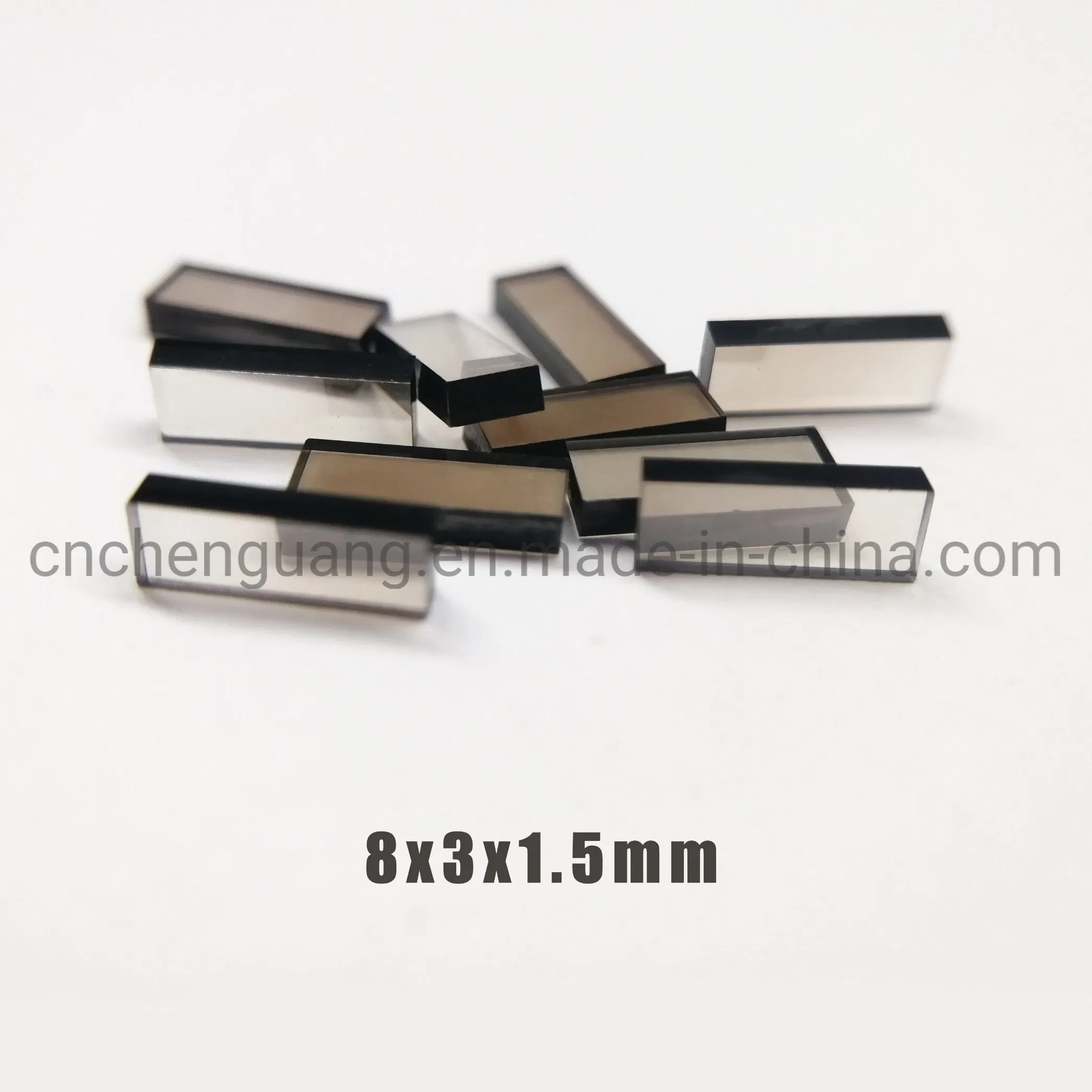

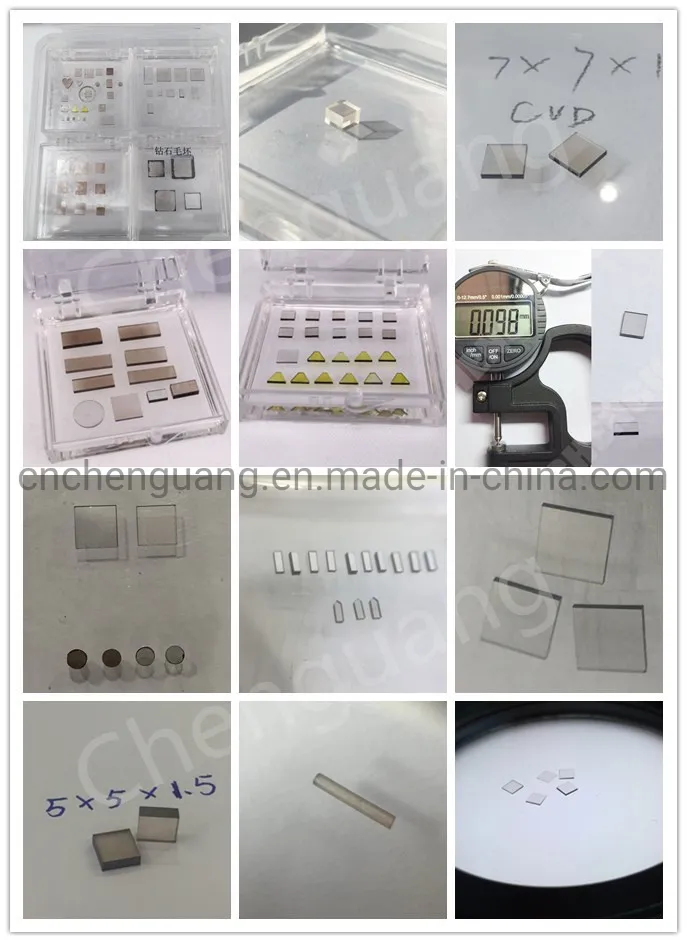

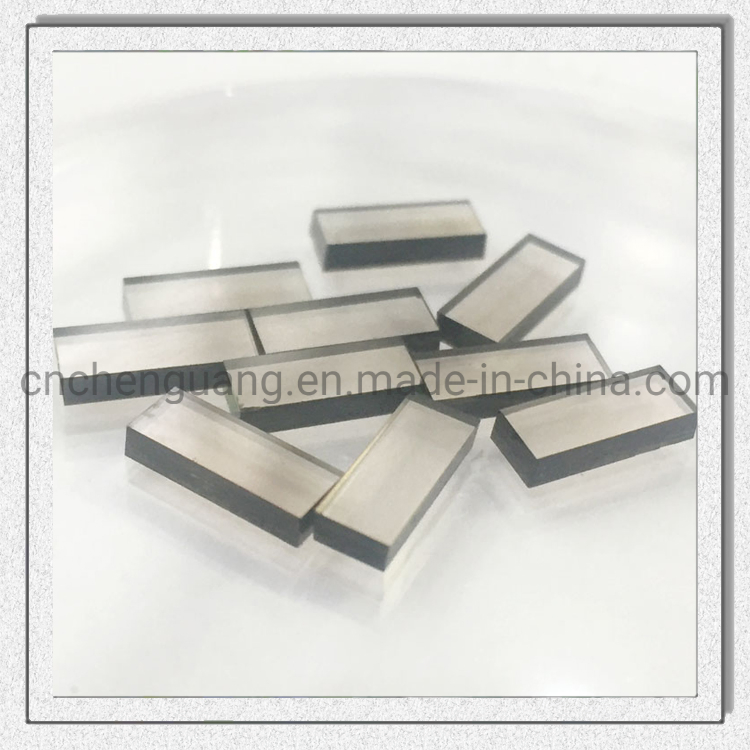

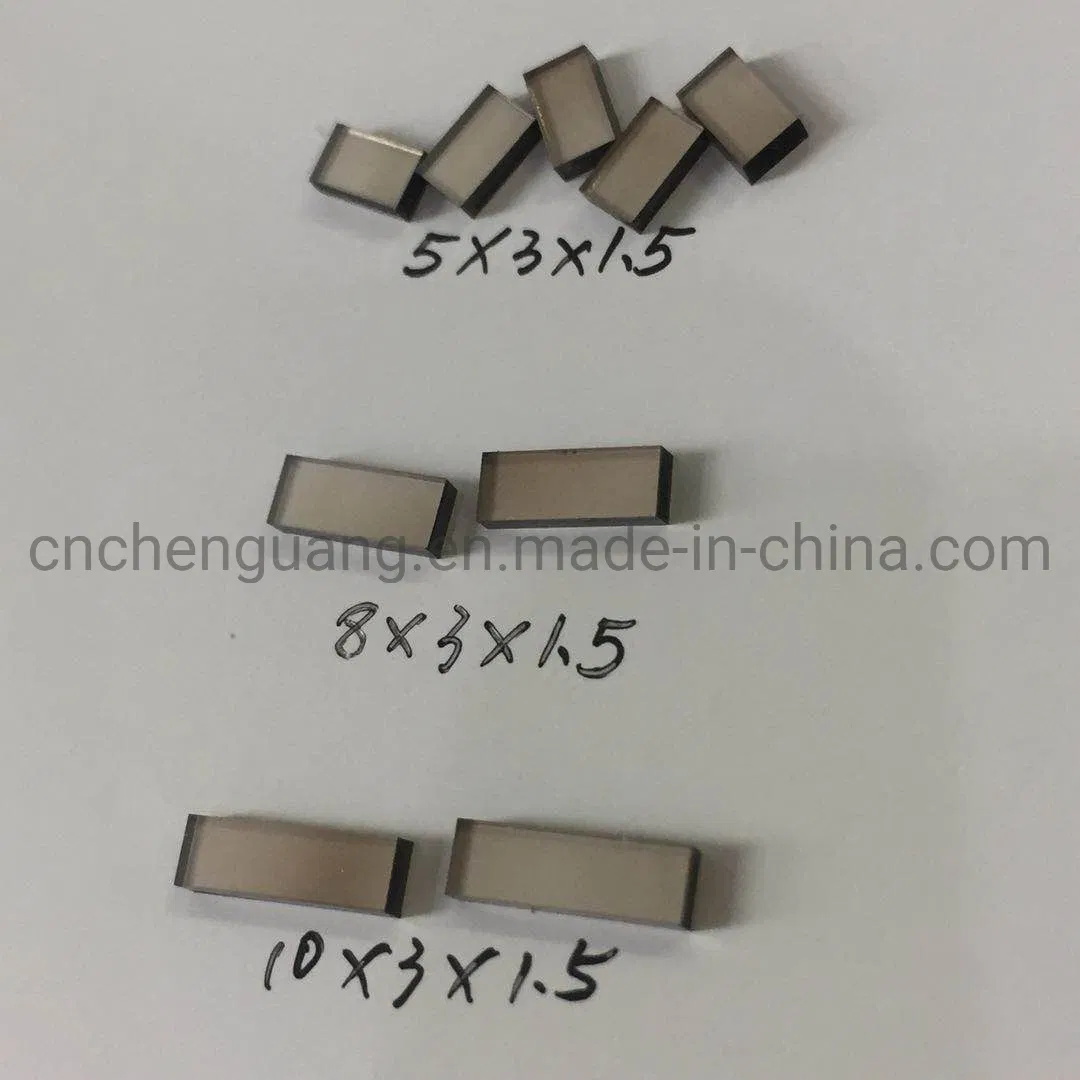

CVD Synthetic White Diamond Plate
High-quality MONO/SINGLE CRYSTALLINE diamond plates available in various dimensions for advanced industrial and scientific applications.
Standard Dimensions:
Size: 1x1 mm to 8x8 mm, 10-12mm
Thickness: 0.3mm to 3mm
Grade and Application
- Industry: Mechanical applications, Wheel Dressers, Die Blanks.
- Electronic: Quantum optics, radiation detectors.
- Optical: Precision tools, windows, anvils, sensors.
- Thermal/Mechanical: Conventional industrial tools.
Technical Parameters
Surface Options:
- As Grown or Laser Cut
- Polished (Ra < 5nm, Flatness < 1 fringes @ 633nm)
- Lapped (Ra < 200nm, Flatness < 1 fringes @ 633nm)
Orientation & Edges:
- Top (100), Customized for Scalpels (based on 2 and 4 point configuration)
- Customized shapes based on specific designs
- Laser cut and both-side polished edges available

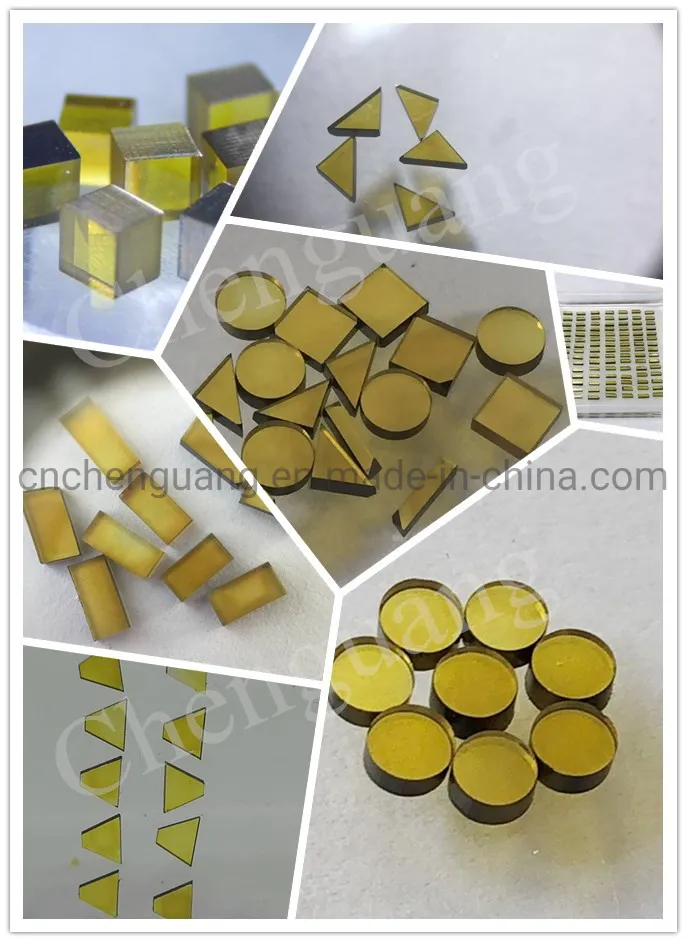

HPHT Diamond Plate Available
We provide a comprehensive range of HPHT diamond plates with superior hardness and transparency.
- Sizes: From 2.0x2.0mm to 5.5x5.5mm and customized.
- Thickness: 1.1mm to 1.7mm.
- Shapes: Round, Square, Rectangle, Hexagonal, and custom shapes.
- Hardness: Moh's 10 (Passes diamond test pen).
Key Advantages
- High quality equivalent to natural diamonds.
- Excellent transparency and high strength.
- Low impurity levels.
- Great thermal stability and high impact resistance.
Ordering Process
1
Consultation: Inform us of your application to receive the most suitable size and grade recommendation.
2
Sampling: Small samples are provided for testing and verification.
3
Confirmation: Once testing succeeds, bulk order arrangements begin.
4
Logistics: Delivery via Express or Air transport according to requirements.
5
Timeline: Standard delivery within 5-7 days after confirmation.
Widespread Applications
Our synthetic diamonds are widely utilized in:
◈ Saws & Drilling Tools
◈ Dressing & Scraping Tools
◈ Electroplated & Metal Bond Wheels
◈ Stone/Ceramics/Glass Processing
◈ Mechanical Pressing Industry
◈ Optical Windows & Wire Drawing Dies
Frequently Asked Questions
What is the difference between HPHT and CVD diamond plates?
HPHT (High Pressure High Temperature) diamonds are grown using a process that mimics natural diamond formation, while CVD (Chemical Vapor Deposition) involves growing diamonds from a hydrocarbon gas mixture. Both offer exceptional hardness and are used for different industrial tool and optical applications.
Can I request customized shapes and sizes?
Yes, we specialize in providing customized shapes including round, square, rectangle, and hexagonal designs, with specific thickness and dimensions tailored to your design requirements.
What is the hardness level of your synthetic diamonds?
Our synthetic diamonds achieve a hardness of Moh's 10, making them equivalent to natural diamonds. They can successfully pass standard diamond test pens.
What surface finishes do you provide for optical applications?
For optical and precision use, we offer polished surfaces with roughness Ra < 5nm and flatness < 1 fringes at 633nm, as well as lapped and laser-cut options.
Do you provide samples for testing?
Yes, we provide small samples for quality verification and testing to ensure the material meets your specific application needs before moving to bulk production.
What is the typical lead time for an order?
Standard delivery time is usually between 5 to 7 business days following the confirmation of the deposit and order details.
