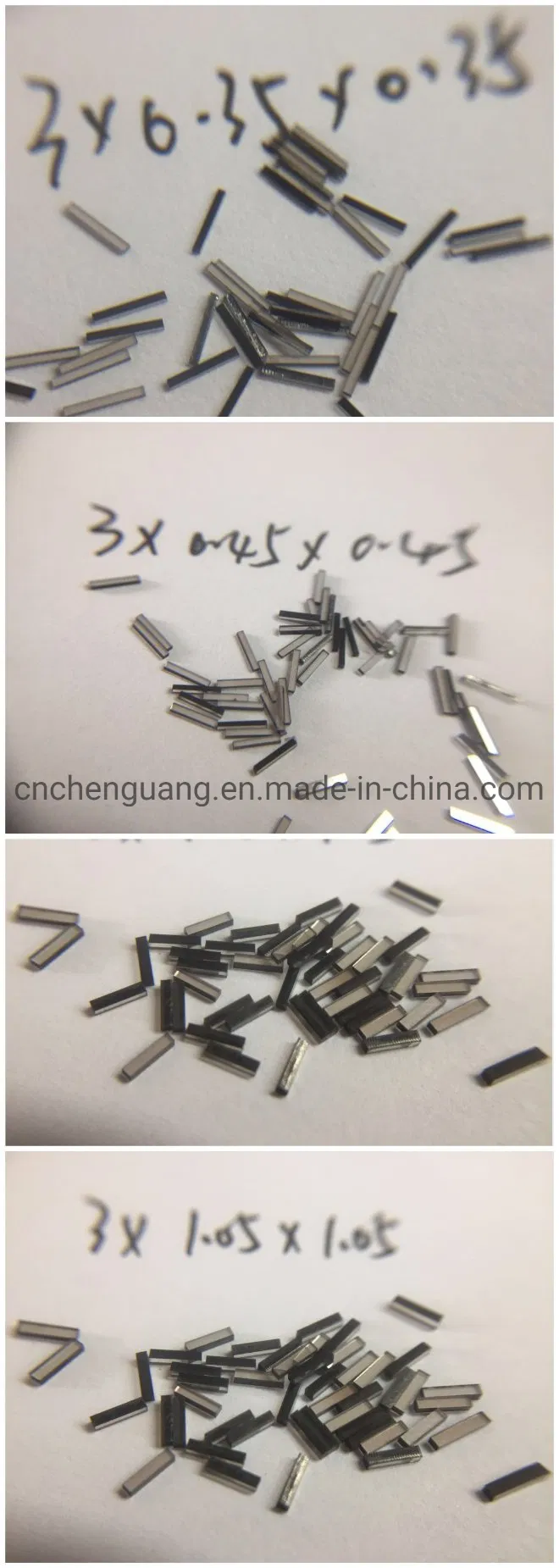

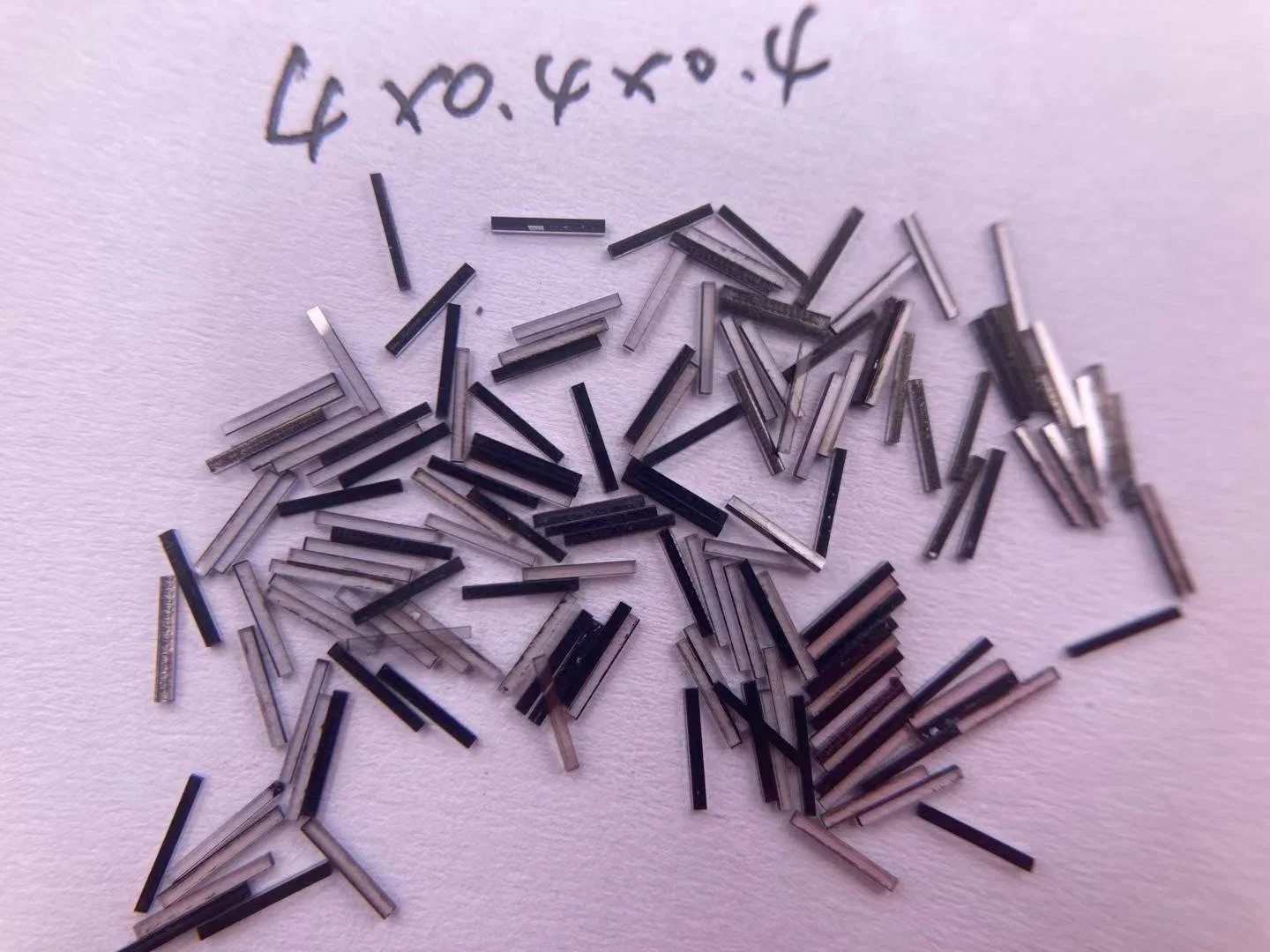

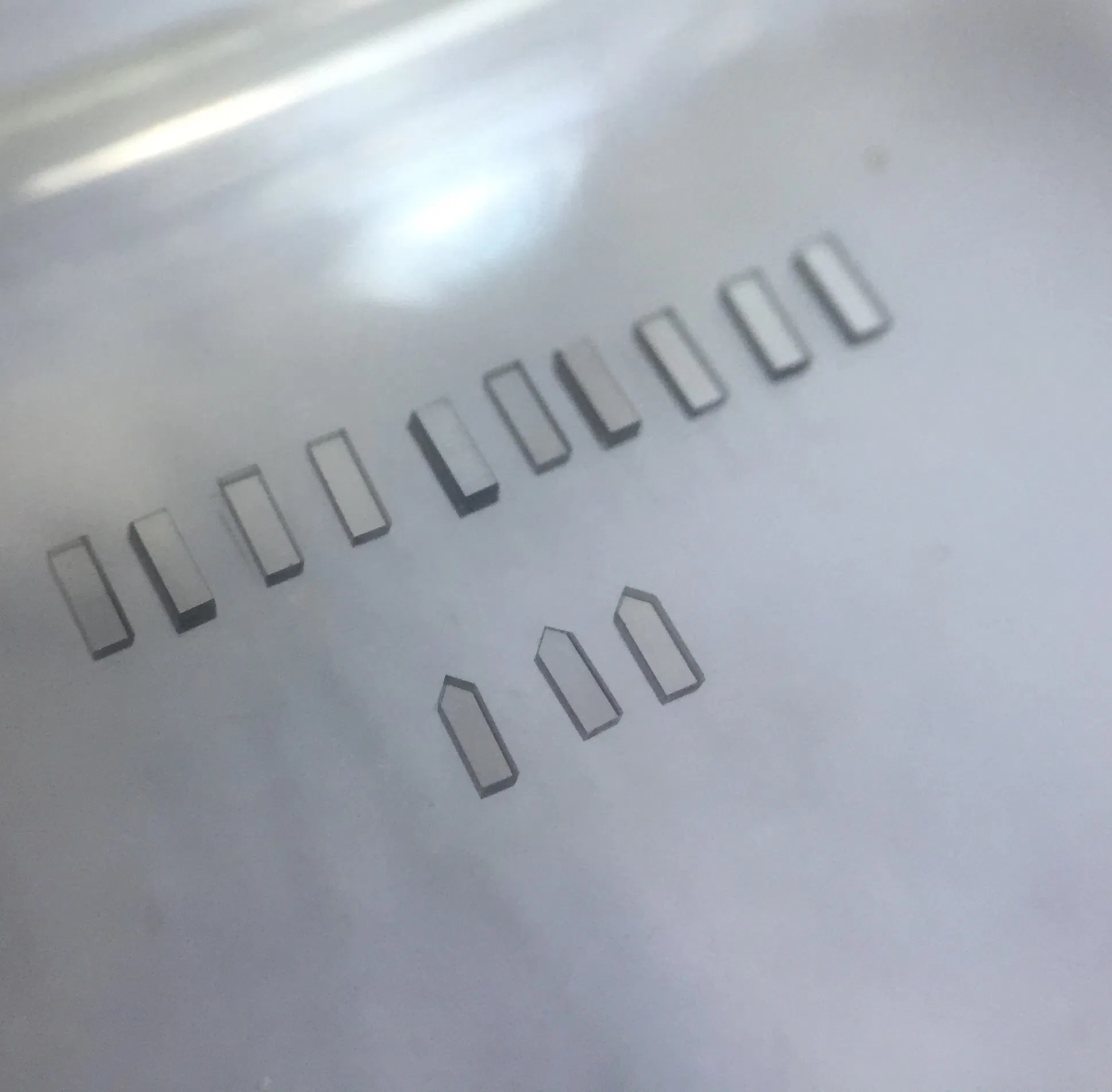

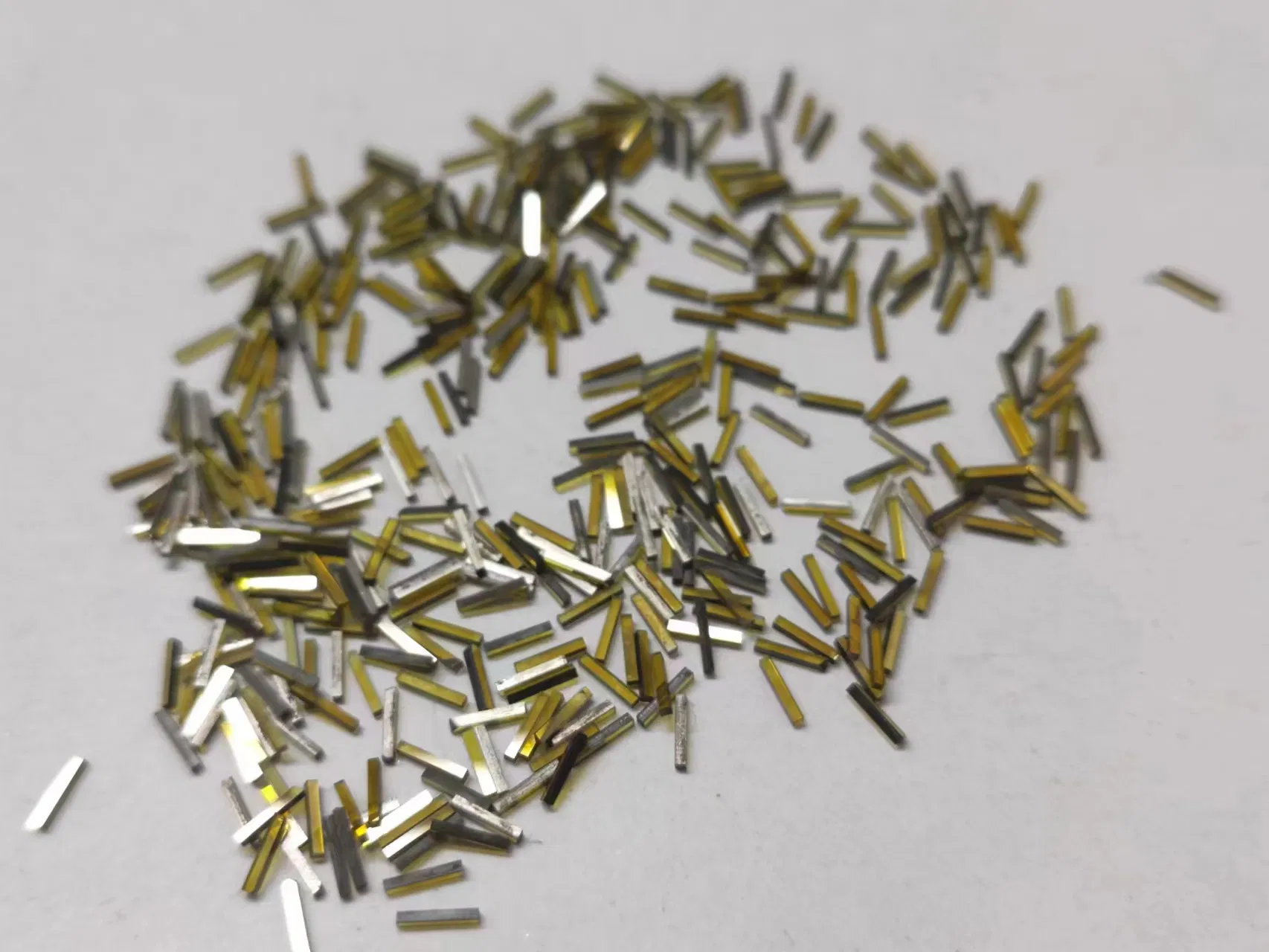

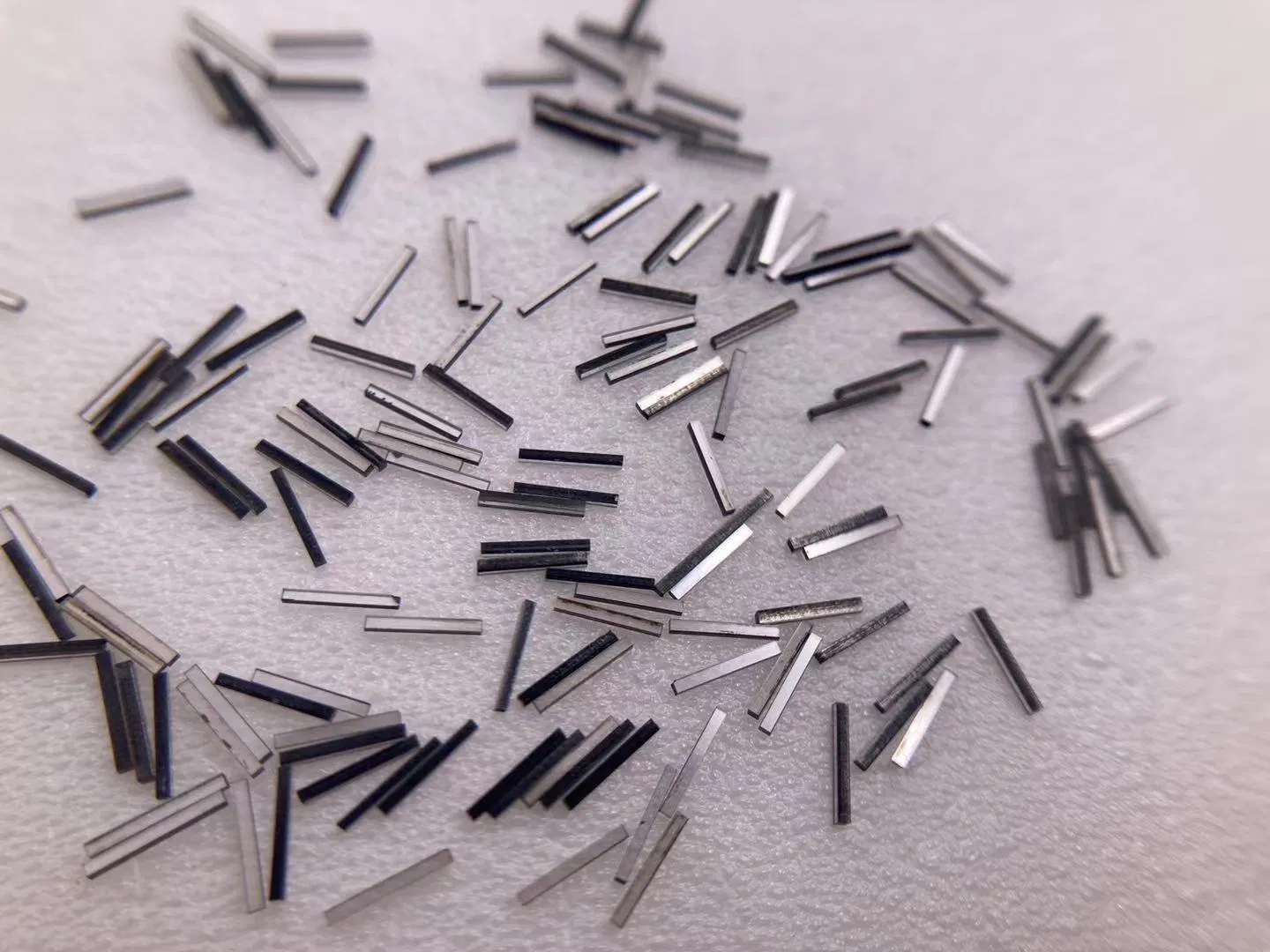

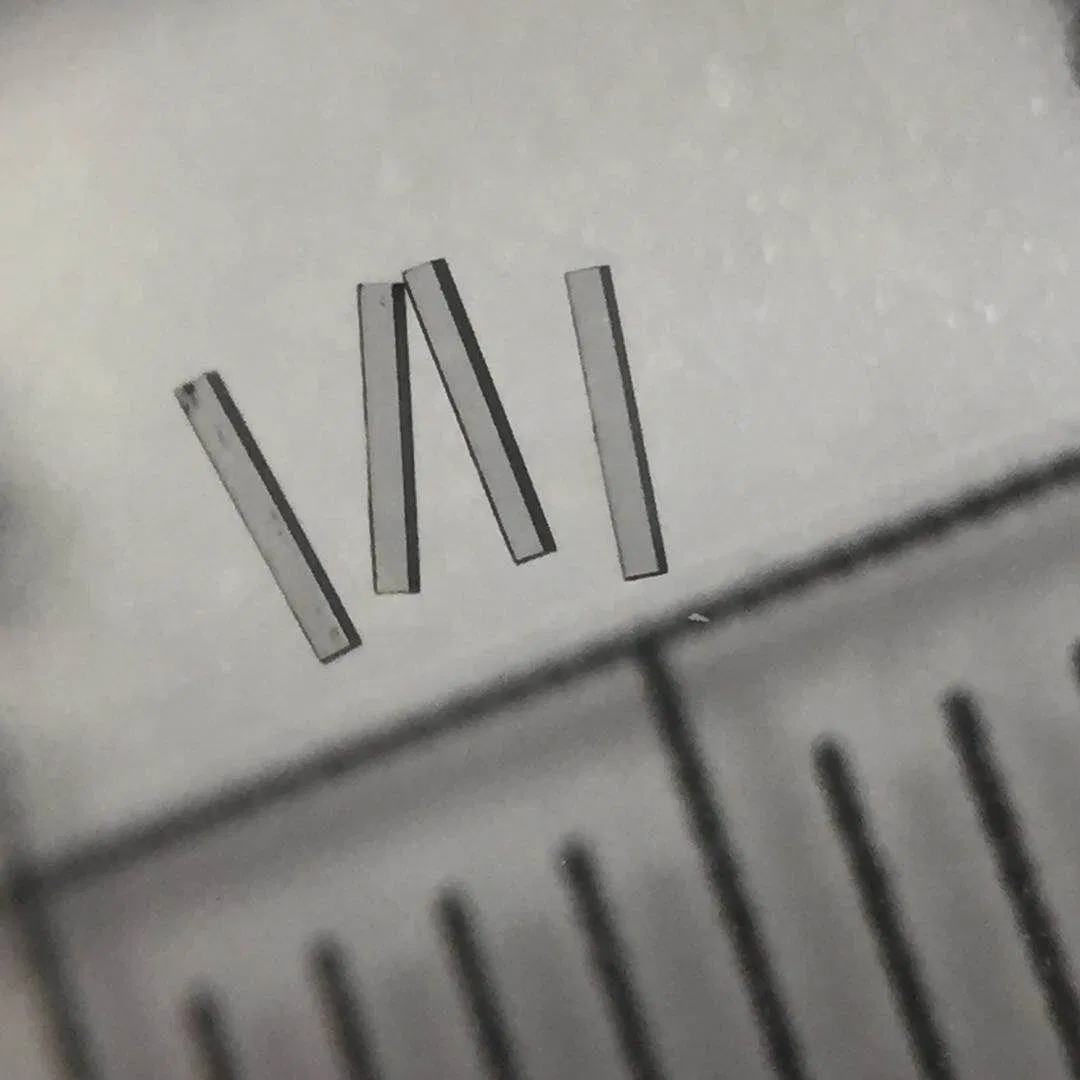

Diamond CVD & Dressing Logs

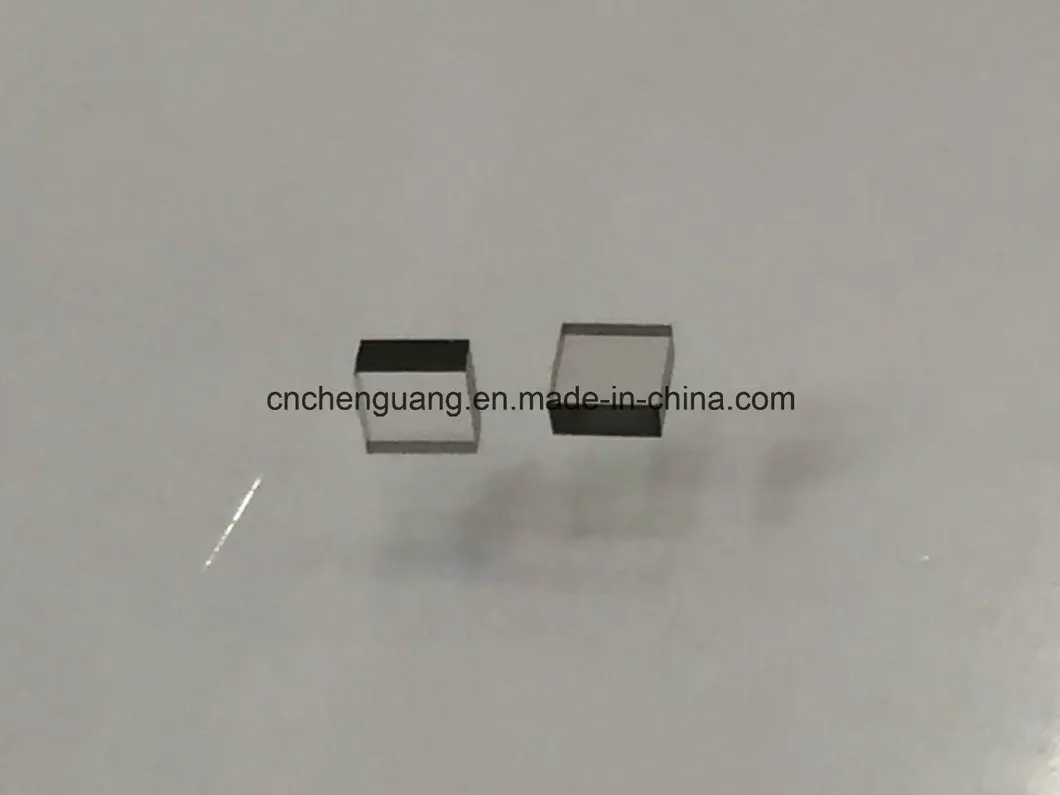

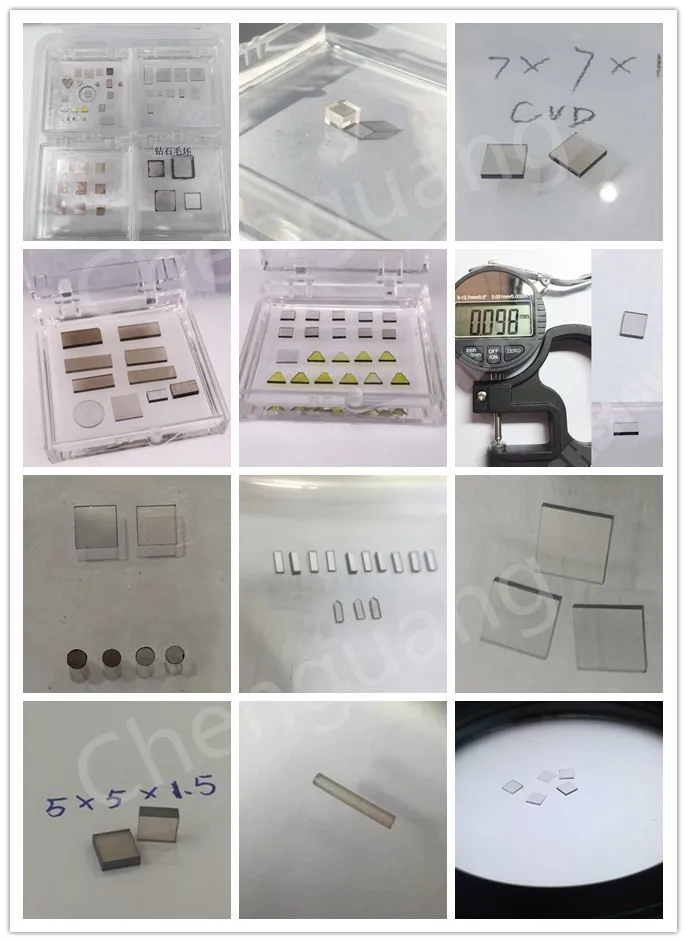

Mono/Single Crystalline CVD Diamond Plate
Available Sizes: 1x1 mm to 8x8 mm, 10-12mm
Thickness Range: 0.05mm to 3mm

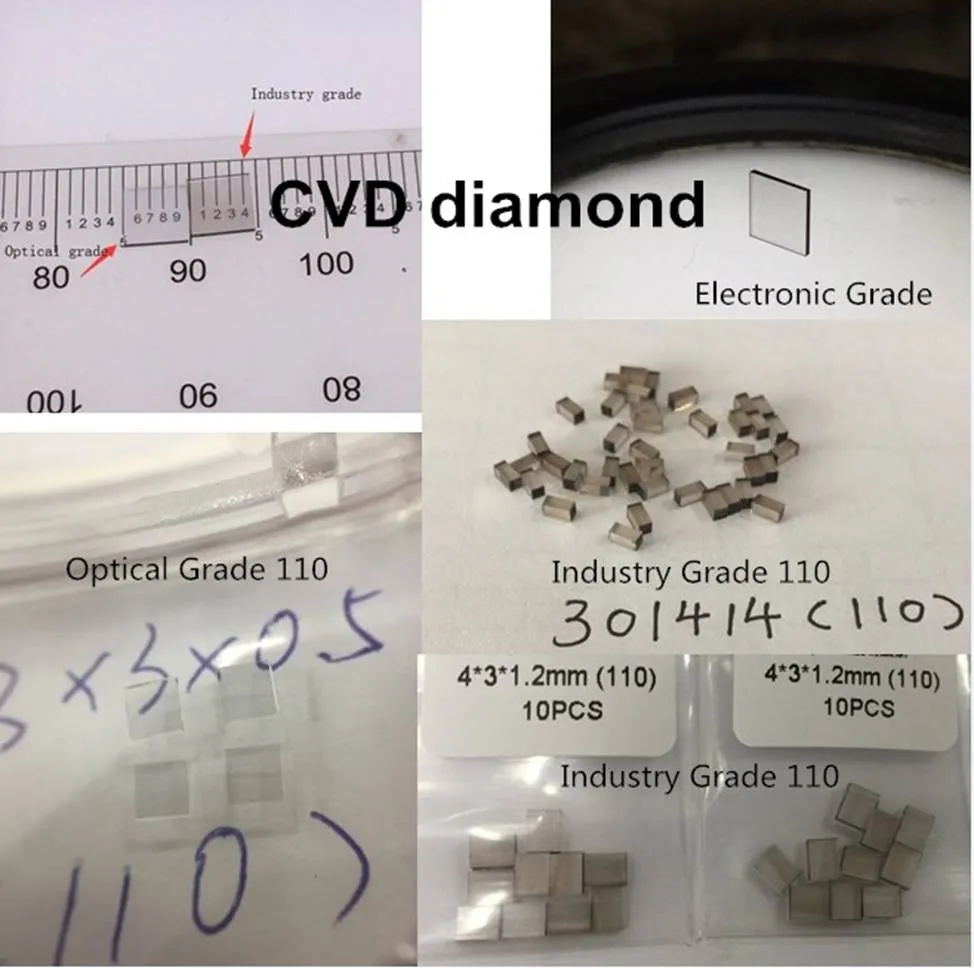

Grade and Applications
- Industry: Mechanical applications, Wheel Dressers, Die Blanks.
- Electronic: Quantum optics, radiation detectors.
- Optical: Precision tools, windows, anvils, sensors.
- Thermal/Mechanical: Conventional tools and heat sinks.
Technical Surface Options
- As Grown or Laser Cut: Raw state for industrial use.
- Polished: Ra < 5nm, Flatness < 1 fringes @ 633nm.
- Lapped: Ra < 200nm, Flatness < 1 fringes @ 633nm.
- Orientation: Top (100), customized for scalpels (2 and 4 point configuration).

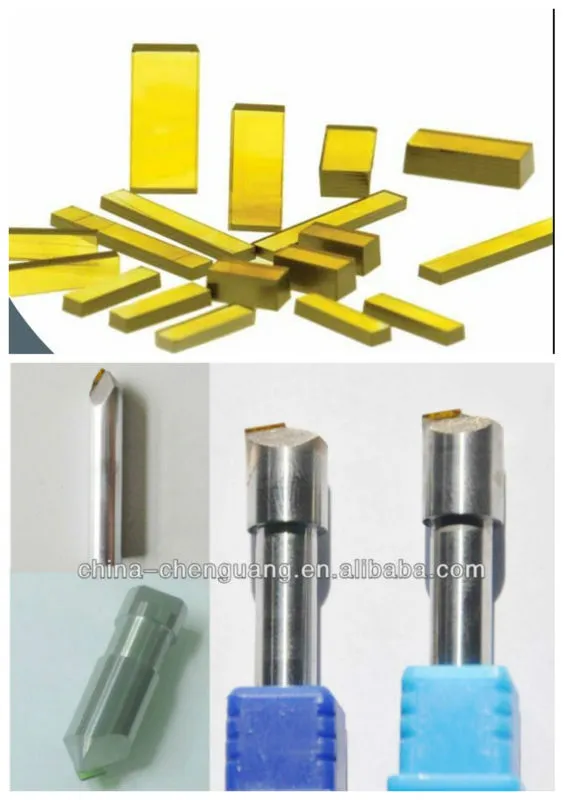

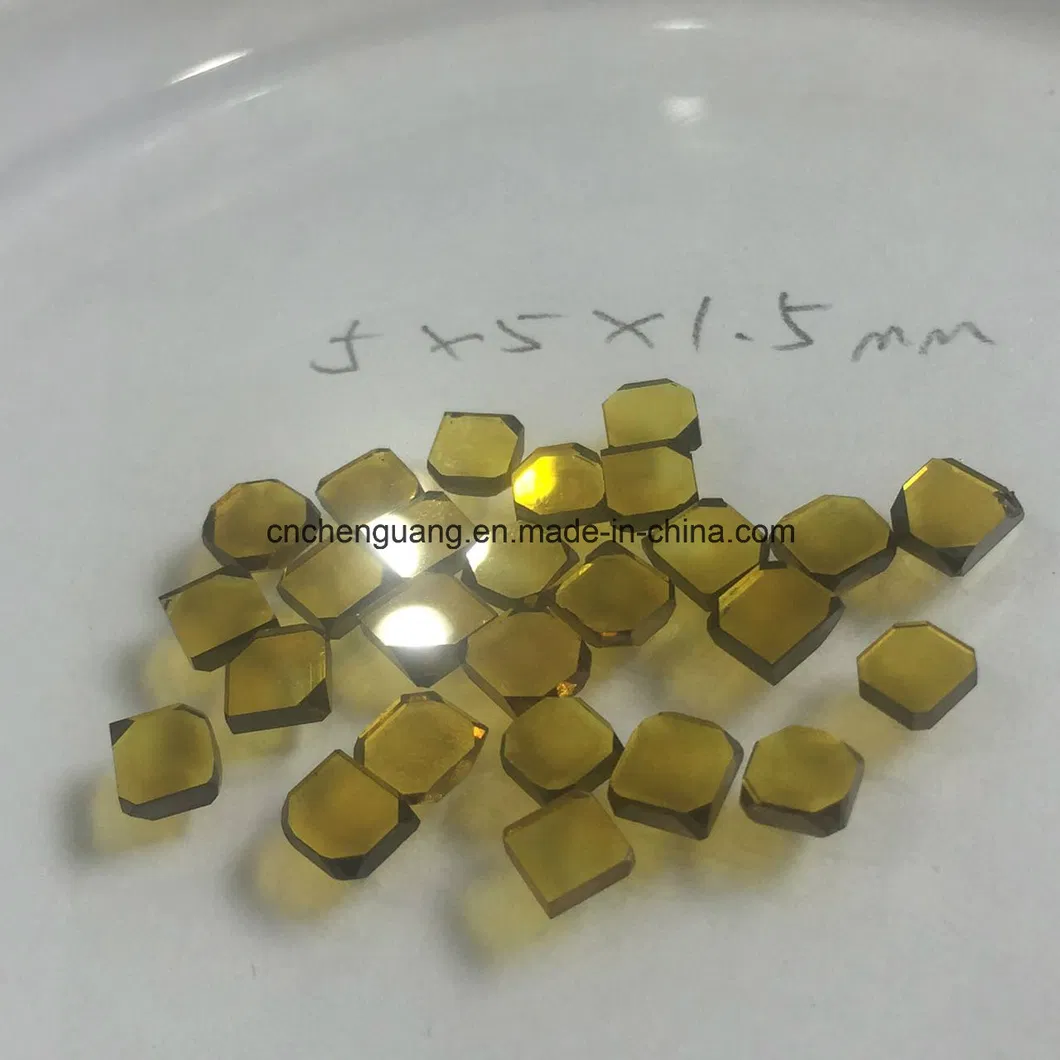

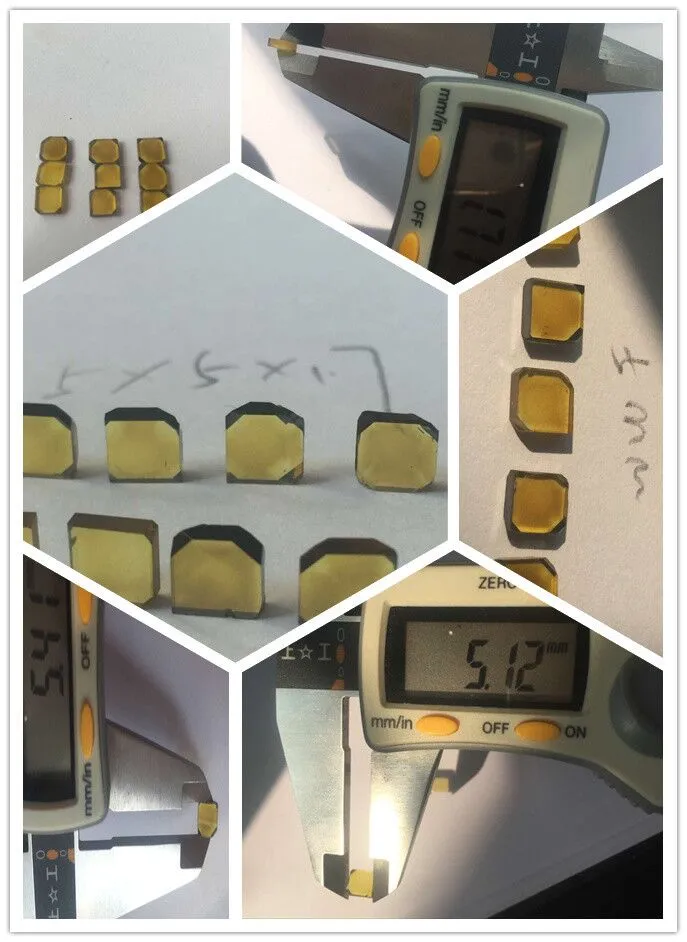

HPHT Single Crystal Diamond Plate
Available sizes for HPHT plates include: 2.5*2.5mm, 3.0*3.0mm, 3.5*3.5mm, 4.0*4.0mm, 4.5*4.5mm, 5.0*5.0mm, 5.5*5.5mm, and 6.0*6.0mm with 1.1mm thickness.
Key Features & Usage
- High hardness, strength, and great thermal stability.
- Excellent impact resistance and good diaphaneity.

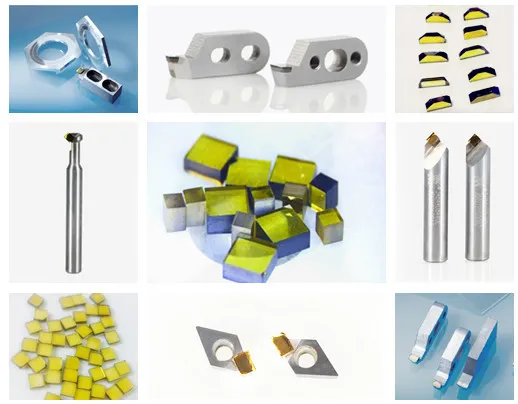

- Applied to high-quality cutting tools for non-ferrous and non-metallic materials.
- Used for wheel dressing, speciality knives, burnishing tools, and wear parts.
Frequently Asked Questions
What sizes are available for CVD diamond plates?
We offer a wide range from 1x1mm up to 12x12mm, with thicknesses ranging from 0.05mm to 3mm. Custom sizes are also available upon request.
What is the difference between HPHT and CVD diamond plates?
HPHT (High Pressure High Temperature) and CVD (Chemical Vapor Deposition) are two different growth processes. Both offer extreme hardness and thermal conductivity but are chosen based on specific application requirements like transparency or crystal orientation.
What surface finishes can be provided?
Depending on your needs, we provide As Grown, Laser Cut, Polished (Ra < 5nm), or Lapped (Ra < 200nm) finishes.
In which industries are these diamonds primarily used?
They are extensively used in mechanical engineering (cutting tools/dressers), electronics (quantum optics), optics (precision windows), and thermal management.
Can I request customized shapes?
Yes, we support customized shape and size production according to specific customer designs and technical requirements.
What is the production capacity for these diamond plates?
Our current production capacity is approximately 2,000 pieces per month, ensuring a steady supply for industrial needs.
