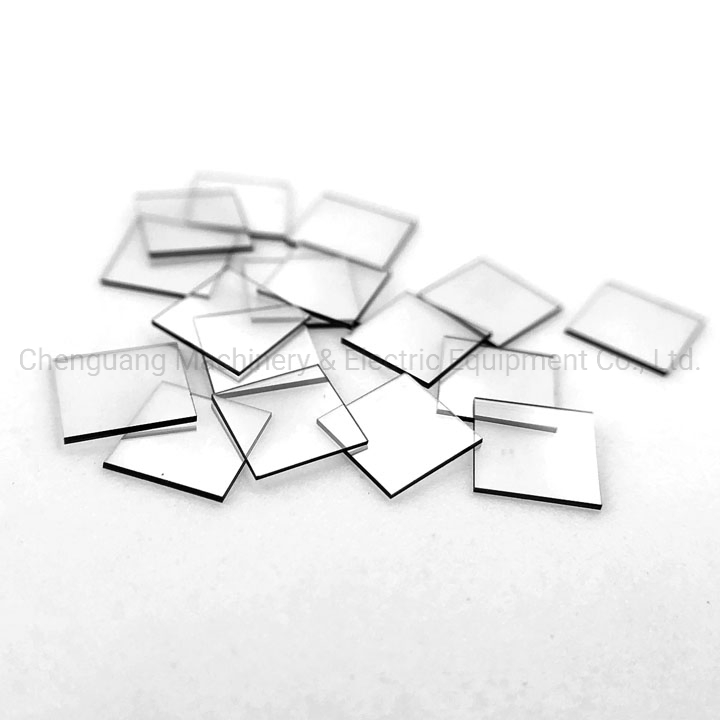

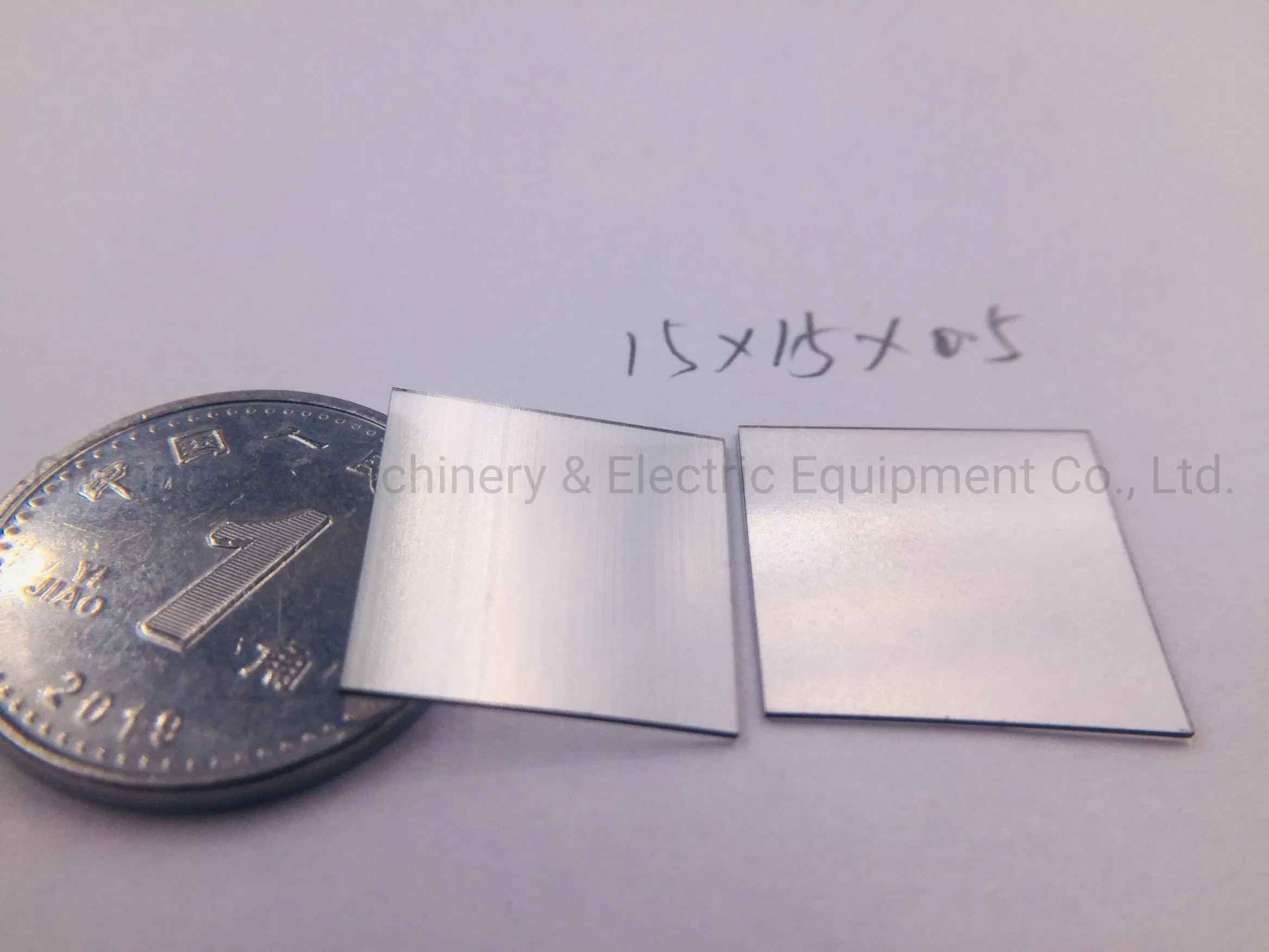

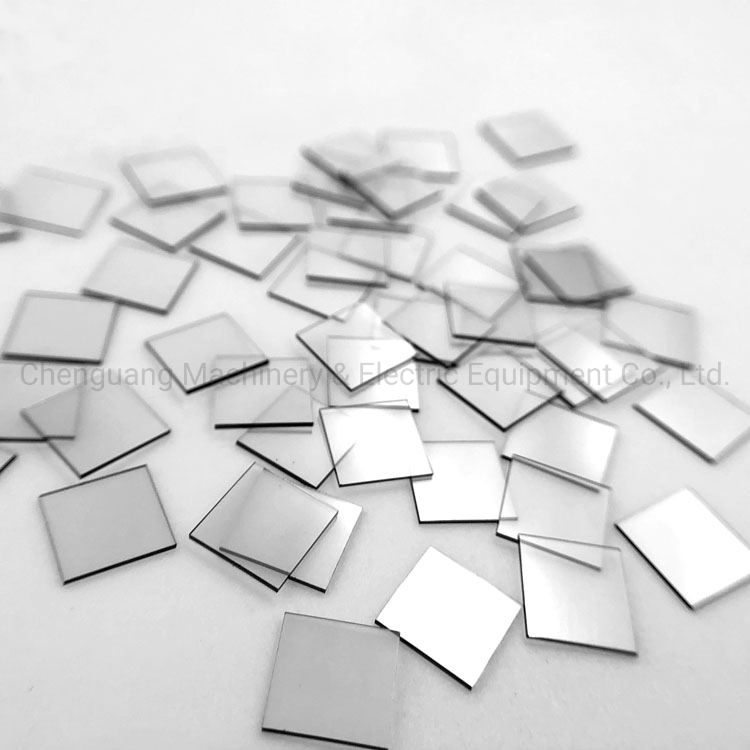

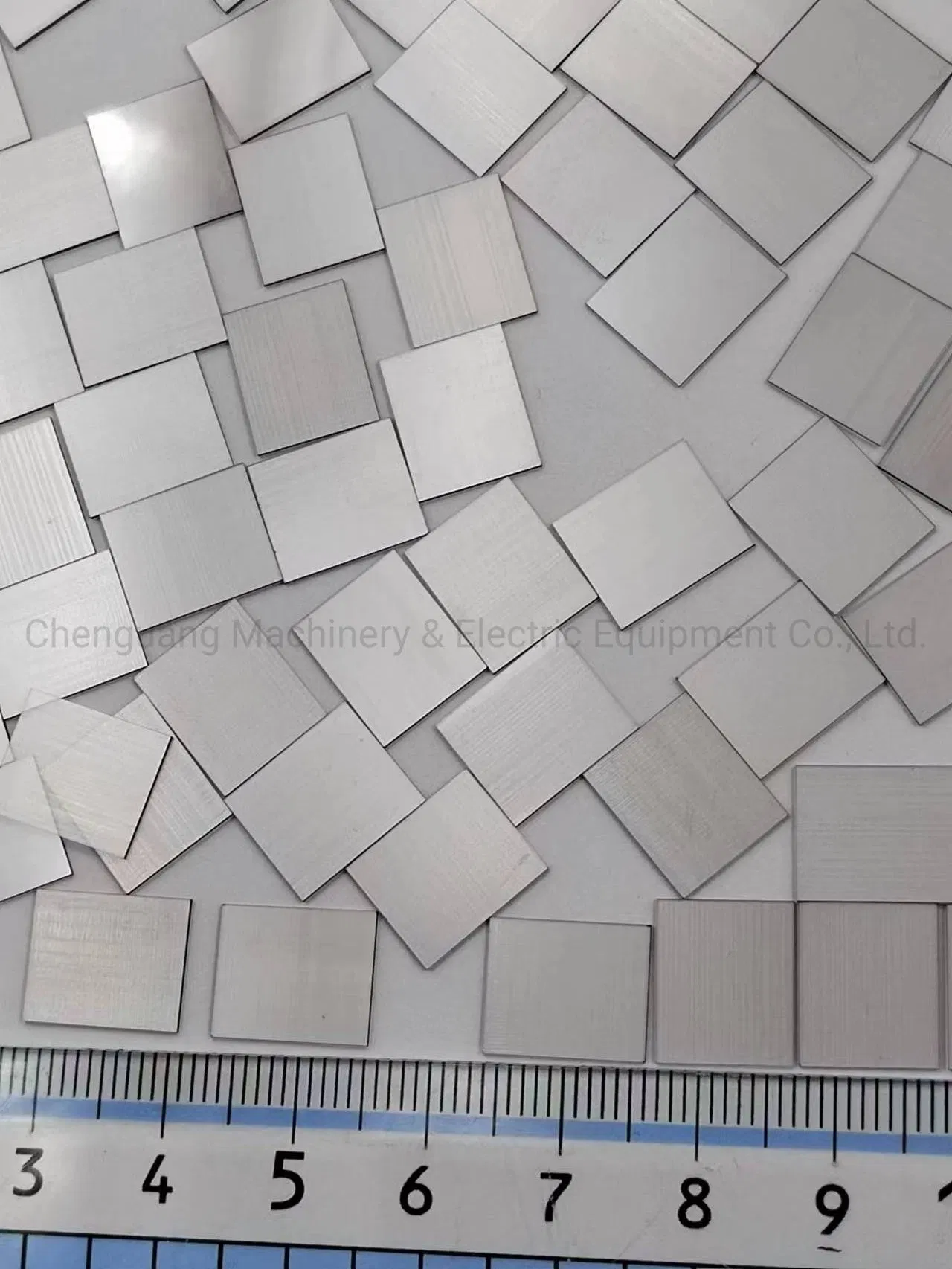

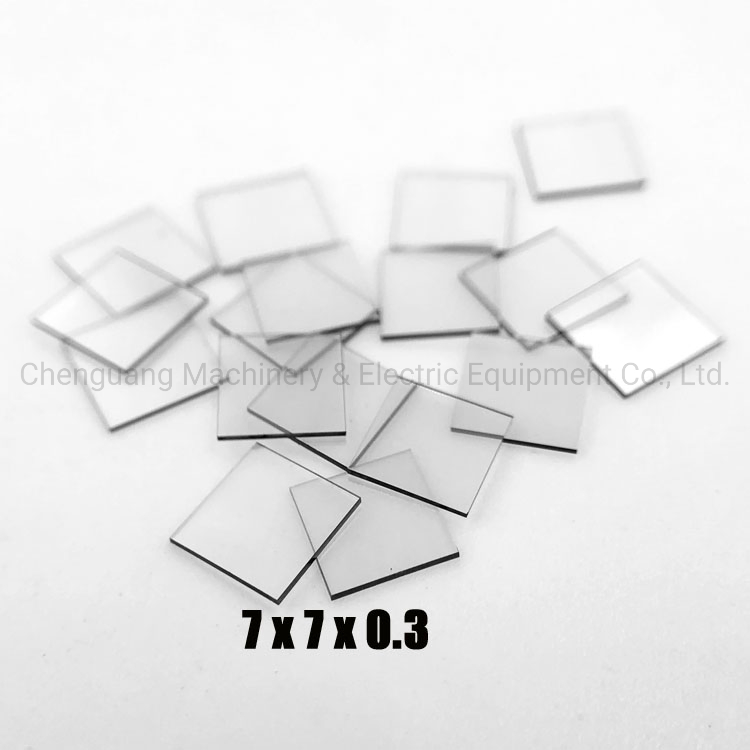

10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
1 / 5
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine
10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine

10*10 11*11 12*12 15*15 High Quality Synthetic Large Size CVD Diamond Seeds Substrate to Diamond Process Machine

Customization: Available
Color: Yellow
Hardness: 10
Send Inquiry

Product Description

Basic Specifications
Process Type:
Hpht
Material:
Diamond
Usage:
Industrial Tools
Package:
Plastic Bottle
Specification:
2-6mm
HS Code:
71049019
Capacity:
5000 PCS/Month
Gross Weight:
0.500kg
Product Description
High Quality Synthetic Large Size CVD Diamond Seeds

Substrate to diamond process machine applications, featuring high thermal conductivity CVD optical grade diamond plates.

Size Range:
1 x 1 mm to 15 x 15 mm
Thickness:
0.3mm to 3mm
PRODUCT DIMENSIONS (T x W x L) APPLICATION TECHNICAL PARAMETERS
CVD Diamond Plate 3*3*1.1mm
4*3*1.0mm
5*3*1.0mm
6*3*1.0mm
7*3*1.0mm
8*3*1.0mm
9*3*1.0mm
10*3*1.0mm
11*3*1.0mm
12*3*1.0mm 		• Dressing Tools
• Milling and cutting tools
• Surgical blade
• SPDT blanks 		Nitrogen content: <100ppm
Lateral tolerance: ±0.1mm
Thickness tolerance: ±0.05mm
Edges: Laser cut (3-4°)
Roughness: Polished, Ra <30nm
Grade & Technical Features
Grade Classifications:
✓ Electronic (Quantum optics, radiation detector)
✓ Optical (Precision tools, window, anvil, sensor)
✓ Thermal/Mechanical (Conventional tools)
Surface Finish:
✓ As Grown or Laser Cut
✓ Polished (Ra < 5nm, Flatness < 1 fringes)
✓ Lapped (Ra < 200nm, Flatness < 1 fringes)
Product Showcase

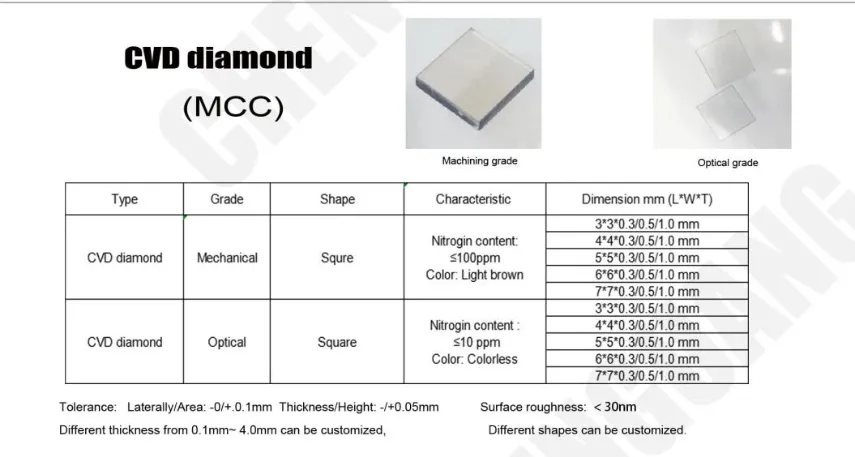

CVD Diamond Seeds
CVD Diamond Plate

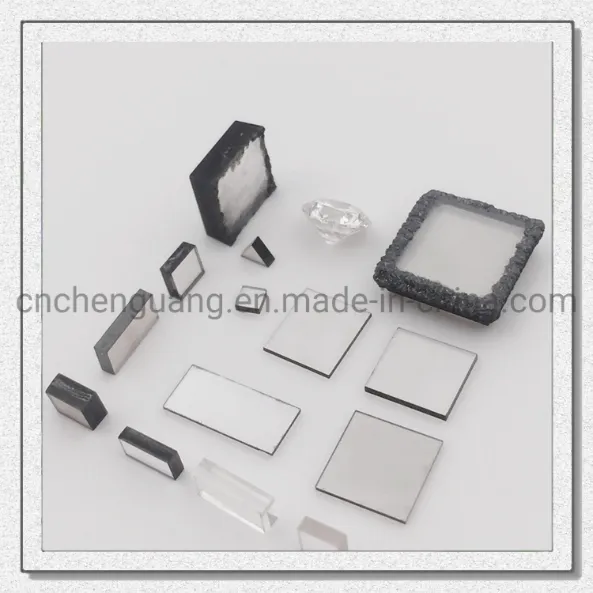

Synthetic Diamond Detail

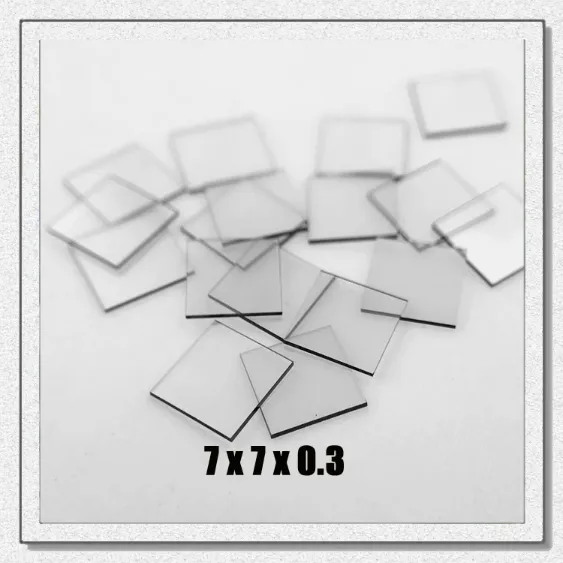

High Quality Diamond Seed

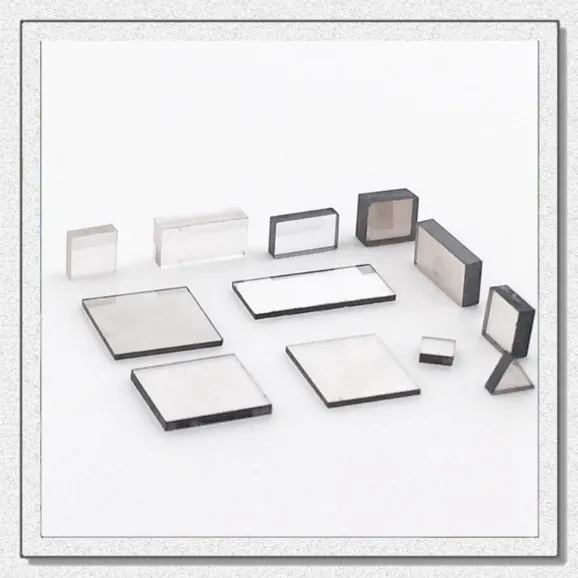

CVD Diamond Substrate
Frequently Asked Questions
Q1: What is the maximum size available for these CVD diamond seeds?
We offer sizes ranging from 1x1 mm up to 15x15 mm, specifically suitable for large-scale diamond growth processes.
Q2: What are the primary applications for optical grade CVD plates?
Optical grade plates are ideal for precision tools, optical windows, anvils, and various sensor technologies due to their high clarity and thermal properties.
Q3: What level of surface roughness can be achieved?
For polished surfaces, we can achieve a roughness (Ra) of less than 5nm, while lapped surfaces typically have an Ra of less than 200nm.
Q4: What is the nitrogen content in these synthetic diamonds?
The technical parameters for our CVD diamond plates specify a nitrogen content of less than 100ppm.
Q5: Can customized shapes be provided?
Yes, we can provide customized shapes based on specific design requirements, including scalpels based on 2 and 4 point configurations.
Q6: What are the thickness tolerances for the plates?
The standard thickness tolerance for our CVD diamond plates is maintained at +/- 0.05mm.
