The Sapphire Crystal/Sapphire IPL Light Guide Block

1 / 5

The Sapphire Crystal/Sapphire IPL Light Guide Block

Customization:	Available
After-sales Service:	One Year
Warranty:	One Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

RAY-LH056#

Usage

Lighting, Medical, Optical, Photography

Material

Optical Glass

Certification

RoHS, ISO9001, CE

Surface Quality

40-20 Scratch-Dig or Custom

Surface Flatness

Lambda/10 at 632.8nm

Coating Type

Dielectric Coating

Wavelength

488-694 Nm/700-950nm

Production

100,000 PCS Per Year

Origin

China

Product Overview

General Introduction: The sapphire crystal material is a 60,000-lattice crystal formed by high-purity alumina (Al2O3) with a purity of more than 99.999%. It features high sound speed, high temperature resistance, corrosion resistance, high hardness, and high light transmittance. With a melting point of 2050 ºC, it is ideal for optical components, infrared devices, and high-intensity radiation materials.

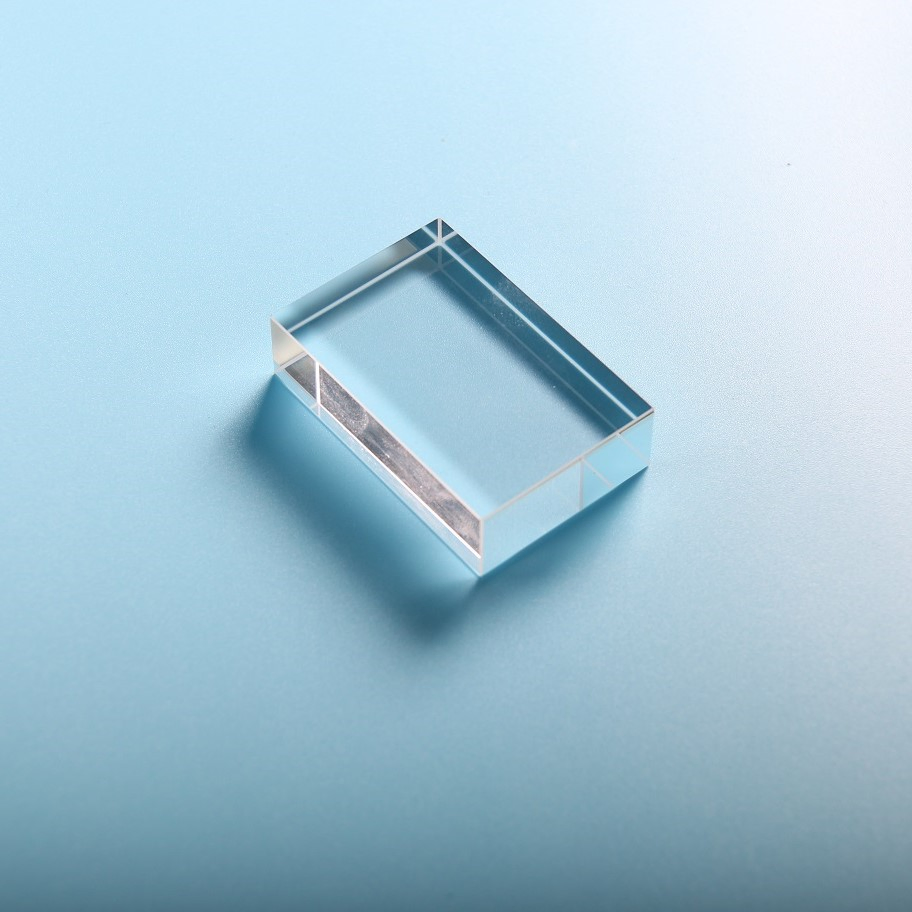

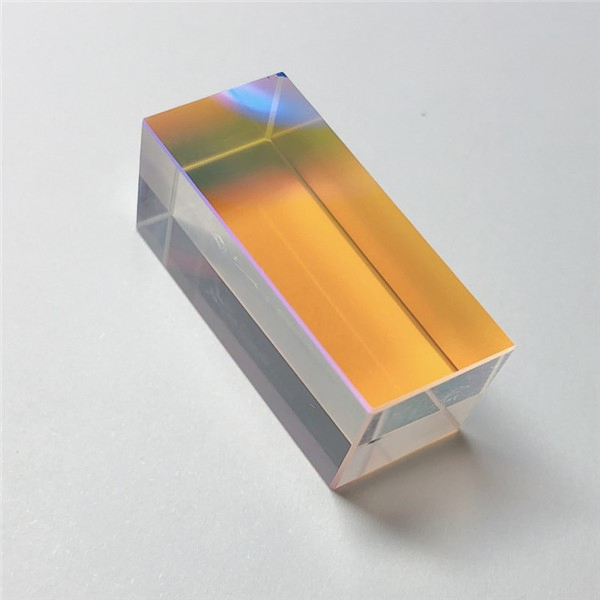

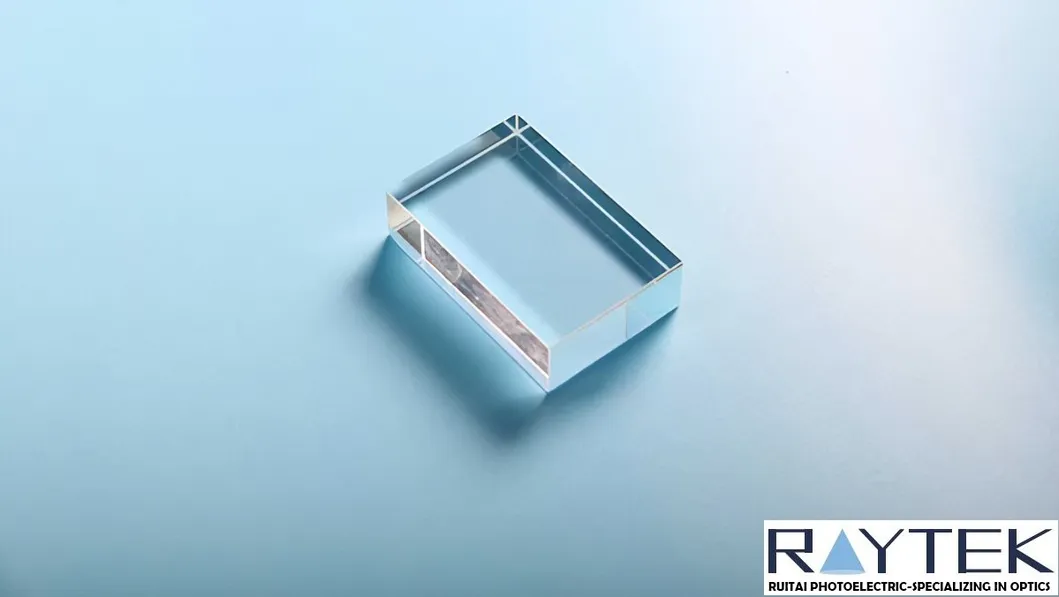

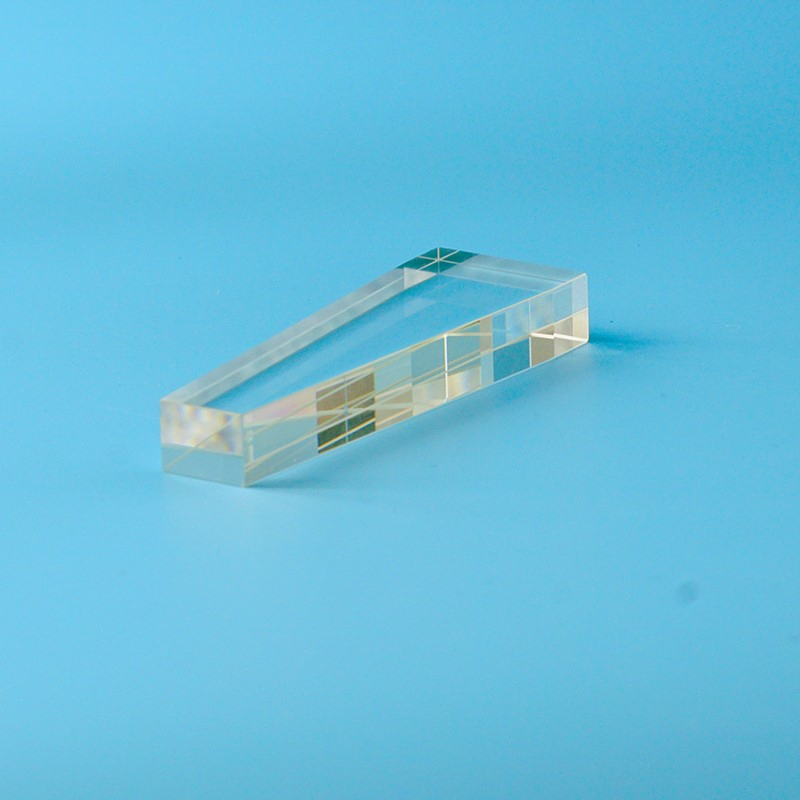

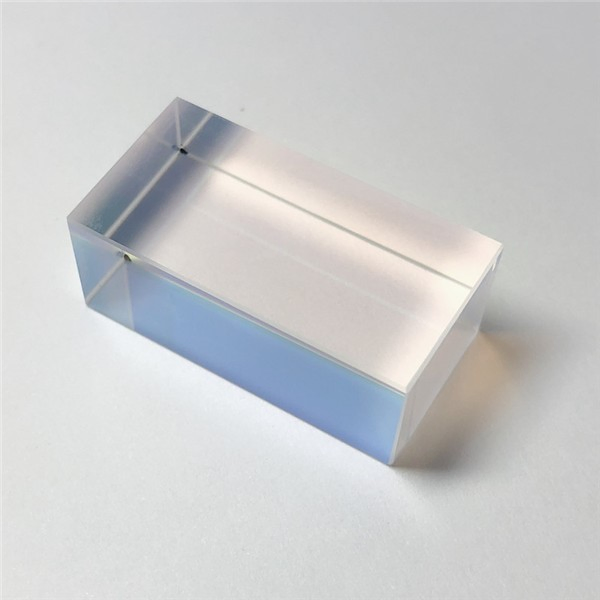

Detailed Description: The sapphire IPL light guide block is designed for laser beauty instruments. This rectangular optical glass features six optically polished sides, with one end face coated with a cut-off filter film. It typically cuts off light below 575nm while allowing 600nm~1200nm to pass, utilizing total internal reflection to emit light precisely for skin beauty treatments.

Material	Sapphire crystal
Peak transmittance	>90%
Clear aperture	>95%
Dimensional tolerance	+/-0.1mm
Length tolerance	+/-0.1mm
Size	Can be customized production
Chamfer	Incident surface <0.1X45°, rest <0.3~0.5X45°
Surface finish	60-40/40-20/10-5

★

Features & Applications

Key Features

High gloss finish, zero bubbles
Exceptional thermal and corrosion resistance
Superior hardness and light transmittance

Primary Applications

Photon skin rejuvenation instruments
Laser wrinkle removal equipment
Advanced laser beauty devices

Value Added Services

Optical process solution design
Rough & semi-finishing raw materials
Custom sizes and shapes fabrication
Custom coating design and supply
Resurfacing of supplied materials
Precision drilling and glass notching
Beveled substrate provision
Non-standard aspect ratio polishing

✓

Trade & Warranty

Payment

T/T or Western Union

Delivery Time

7-10 days

Quality Policy

Comprehensive quality warranty with "3R" policy (Return, Replacement, Refund) for any inferior-quality products.

Frequently Asked Questions

What makes sapphire superior to standard optical glass for IPL applications?

Sapphire offers much higher thermal conductivity and physical hardness, allowing it to withstand the high energy and heat generated by laser beauty instruments without damaging the surface.

Can the light guide blocks be customized to specific dimensions?

Yes, we provide full custom manufacturing services for various sizes, shapes, and thicknesses to fit different beauty equipment specifications.

What is the standard wavelength range for the filter coatings?

Typically, the coatings are designed to cut off light below 575nm and allow high transmission between 600nm and 1200nm, though custom ranges like 488-694nm are also available.

What surface quality levels do you provide?

We offer precision surface finishes ranging from 60-40 down to 10-5 scratch-dig, depending on the optical requirements of your application.

How is the quality of the sapphire material ensured?

We use high-purity alumina (99.999%+) and adhere to ISO9001 and CE certifications. Our "3R" policy ensures full accountability for product quality through returns, replacements, or refunds.

What are the typical lead times for international orders?

Standard production and processing usually take 7-10 days, followed by shipping to various regions including the USA, UK, Europe, and Asia.
