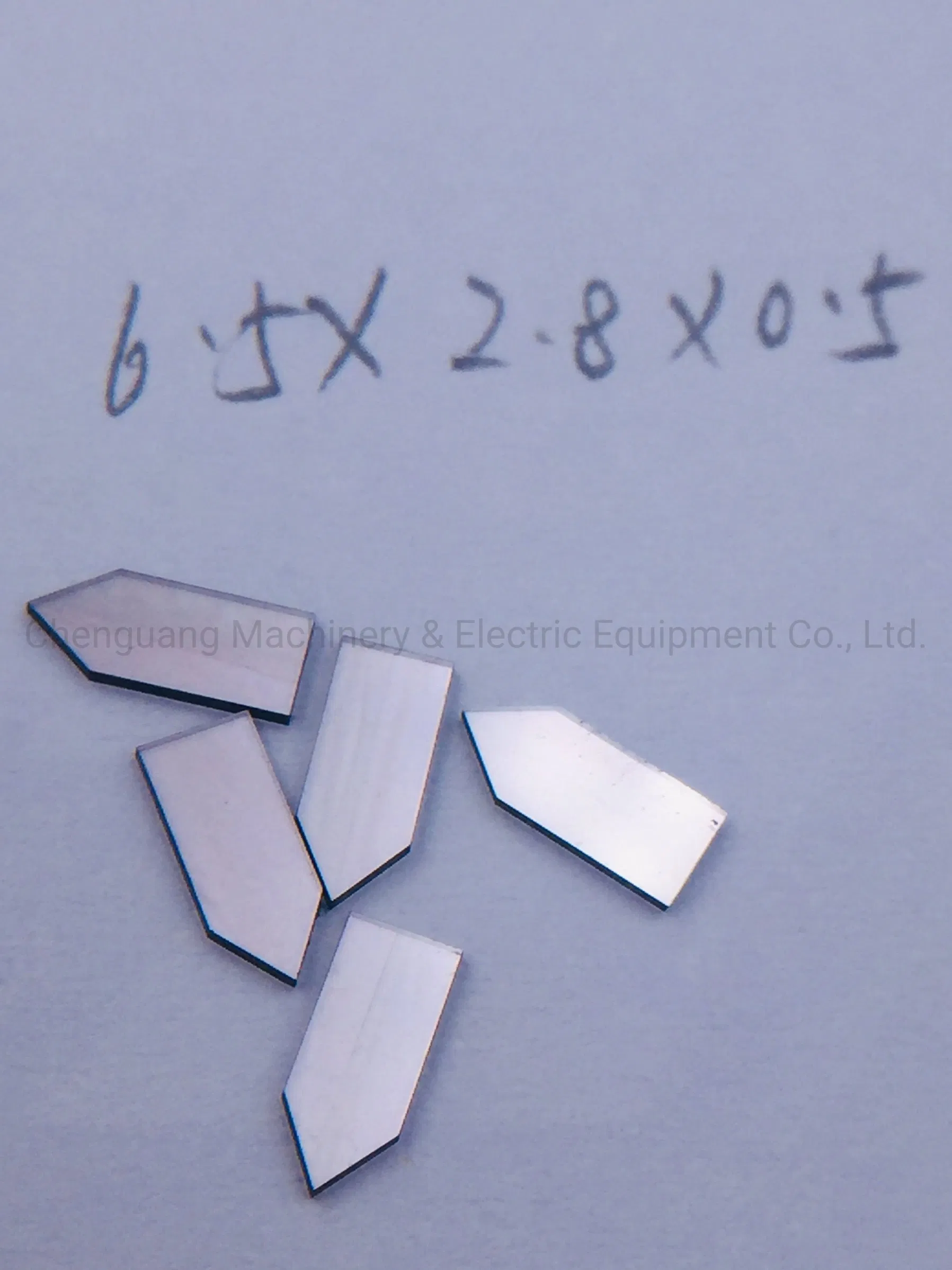

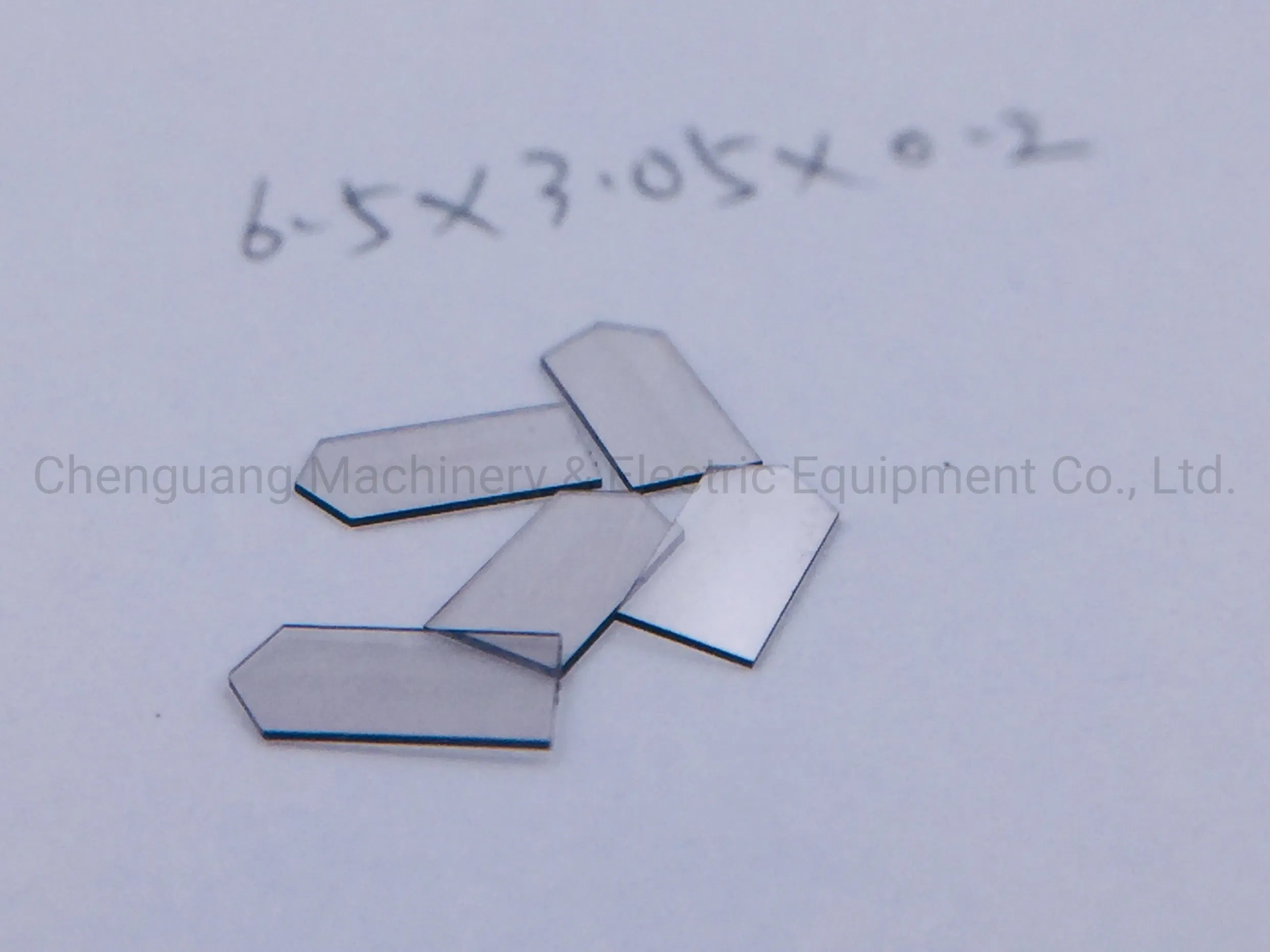

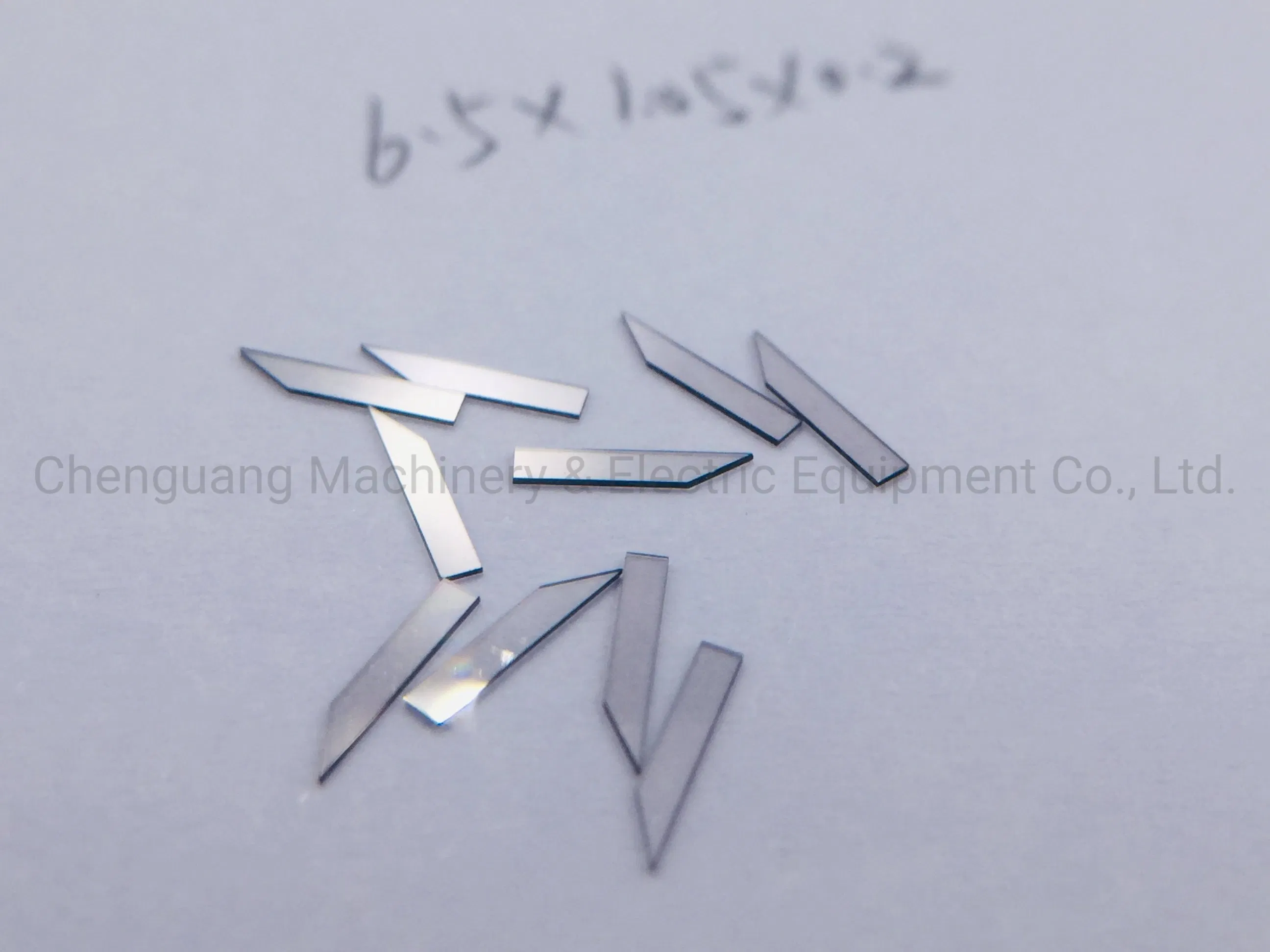

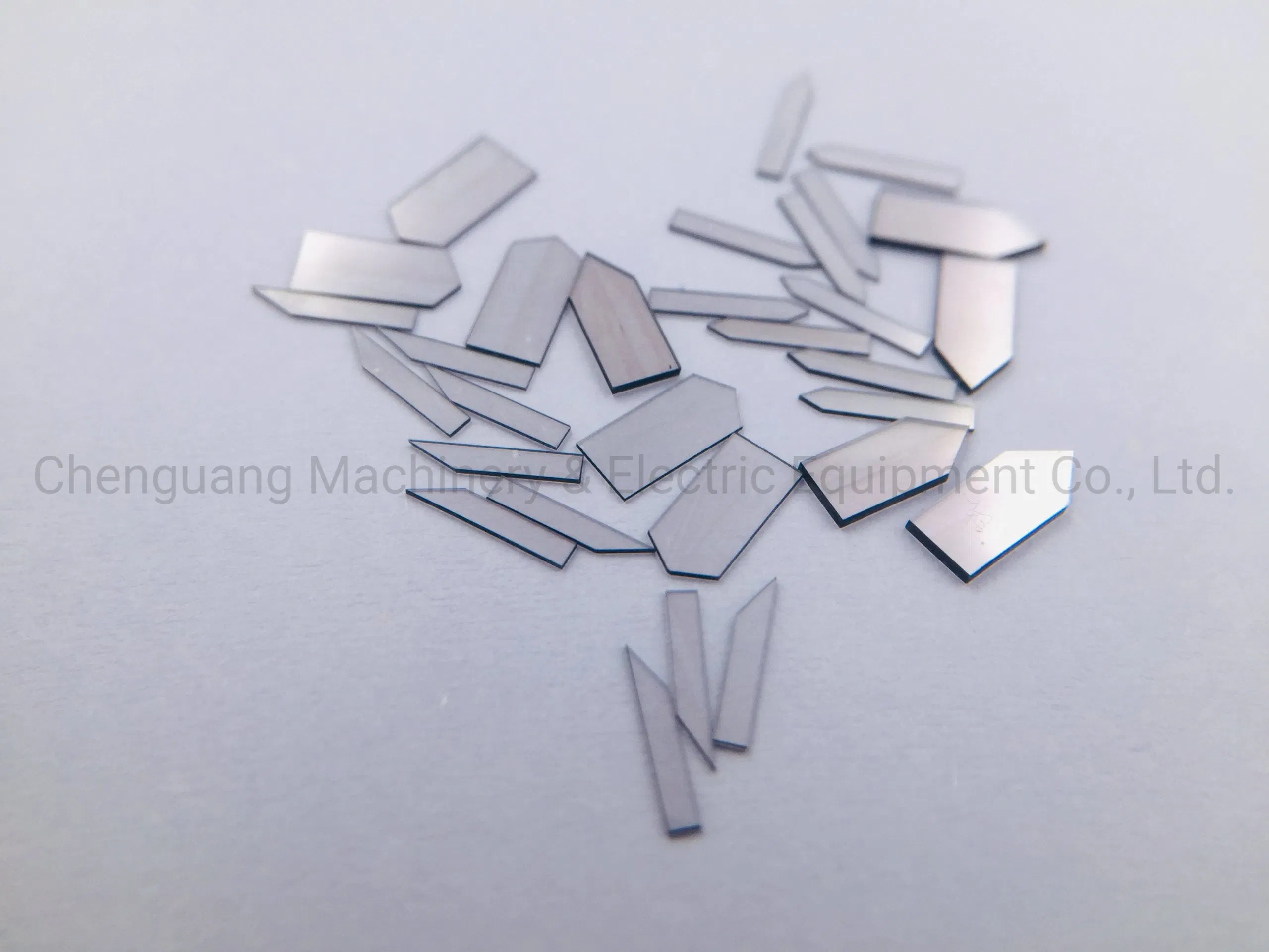

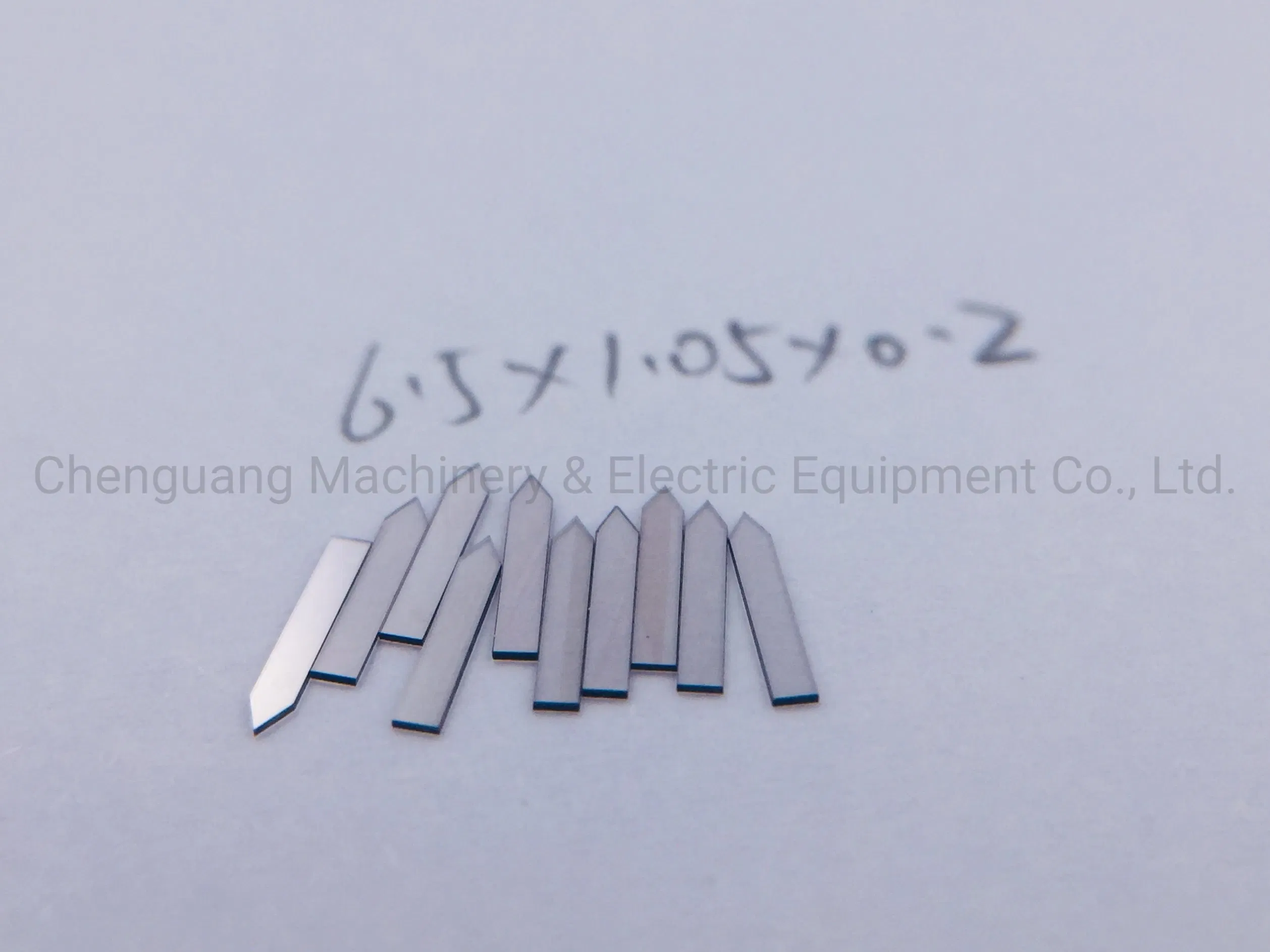

Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
1 / 5
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2
Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2

Ultra Thin Diamond Surgical Blades Best CVD Diamond Scalpel 110 Orientation 2PT 6.5*1*0.2

Customization: Available
Color: White
Hardness: 10
Send Inquiry

Product Description

Ultra Thin Diamond Surgical Blades & CVD Diamond Scalpel

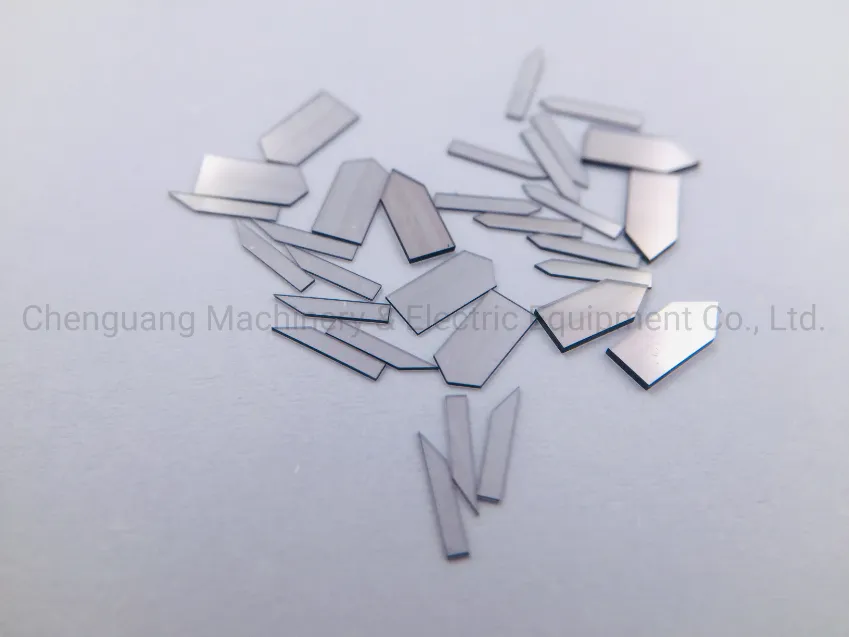

Ultra Thin Diamond Surgical Blades

110 Orientation 2PT | Size: 6.5*1*0.2

Technical Specifications

Process Type
CVD
Material
Diamond
Usage
Optical, Electronic, Seeds
Specification
1-14mm
Origin
Hunan, China
HS Code
71049019
Capacity
5000 PCS/Month
Package Size
20.00cm * 20.00cm * 10.00cm

Key Features & Advantages

  • Superior Quality: No visible growth lines, no black spots, no impurities, and no cracks under 100x microscope.
  • High Durability: Scratch proof, wear resistance, and high mechanical stability.
  • Spectral Range: Wide spectral transparency from UV to THz.
  • Stability: High strength and great thermal stability with excellent stress performance.
  • Precision: Regular shape and uniform size strictly controlled per customer needs.
  • Applications: Suitable for Industrial, Electronic, and Optical grades.

Product Parameters

Parameter Details
Crystal Growth ProcessMono CVD Diamond
ColorNormal Grade (Near Colorless) / Mechanic Grade (Brown)
Size Range7*7, 8*8, 9*9, 10*10, 11*11, 12*12 (Thickness: 0.1-0.5mm)
Orientation4pt/100, 110 orientation
ShapeSquare, Rectangle, Triangle
EdgesLaser Cut (Laser Kerf < 3°)
Lateral Tolerance+0.1/-0 mm
Roughness (Ra)Two sides polished: Ra < 30 nm

Product Gallery

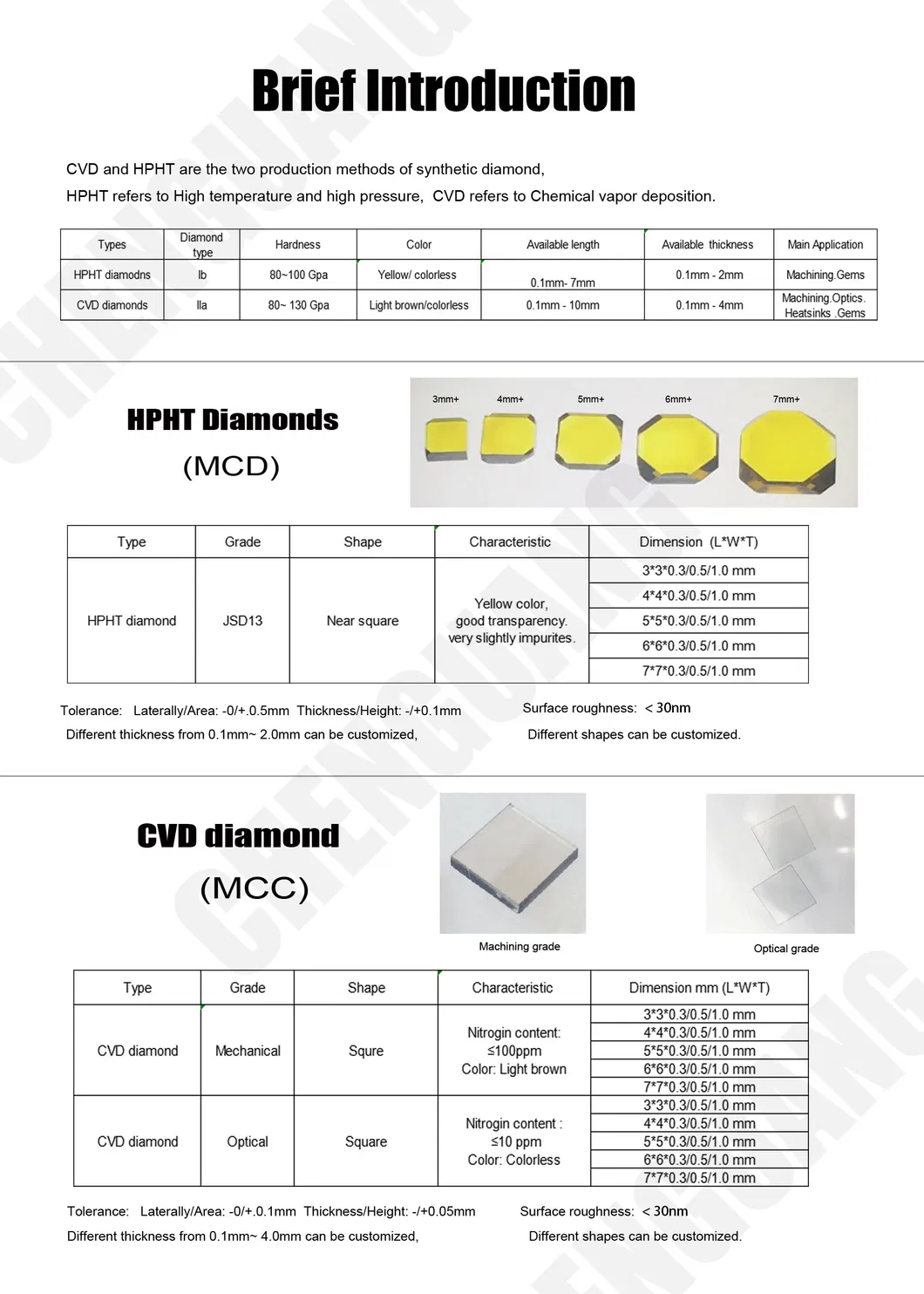

Diamond Plate 1

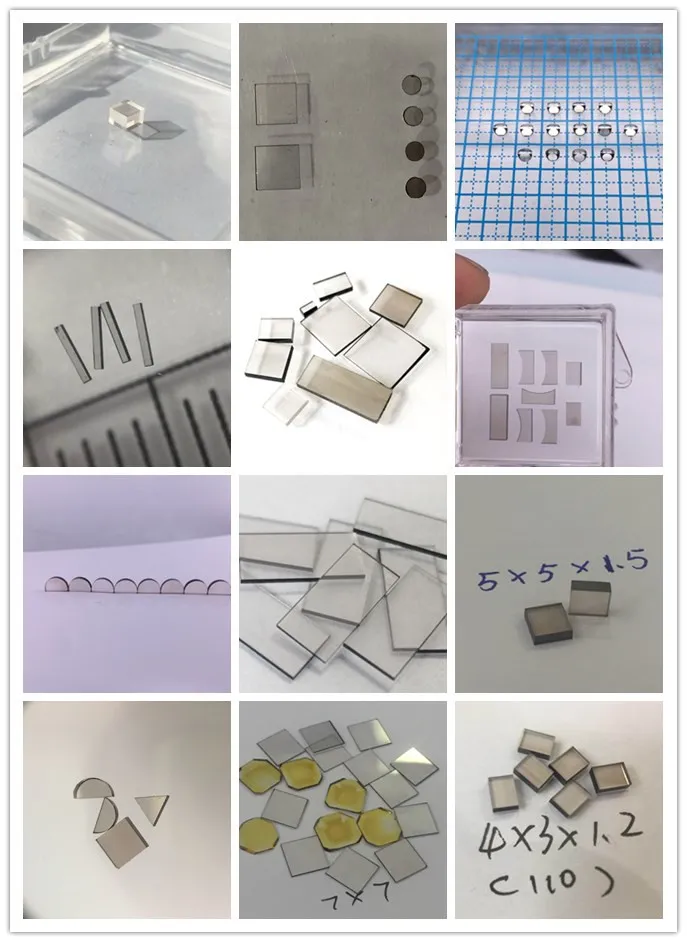

Diamond Plate 2

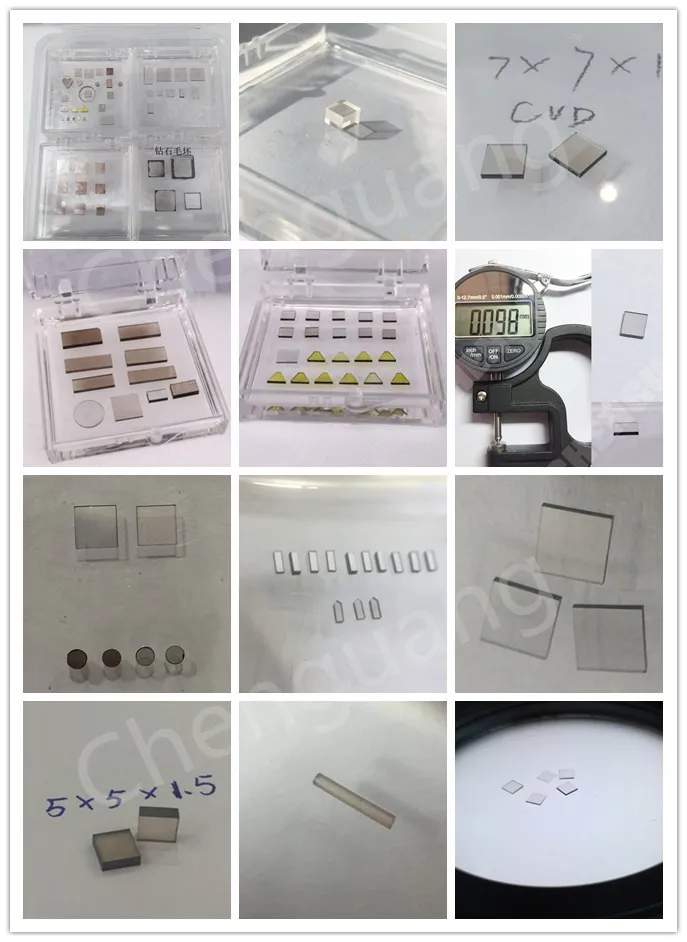

Diamond Plate 3

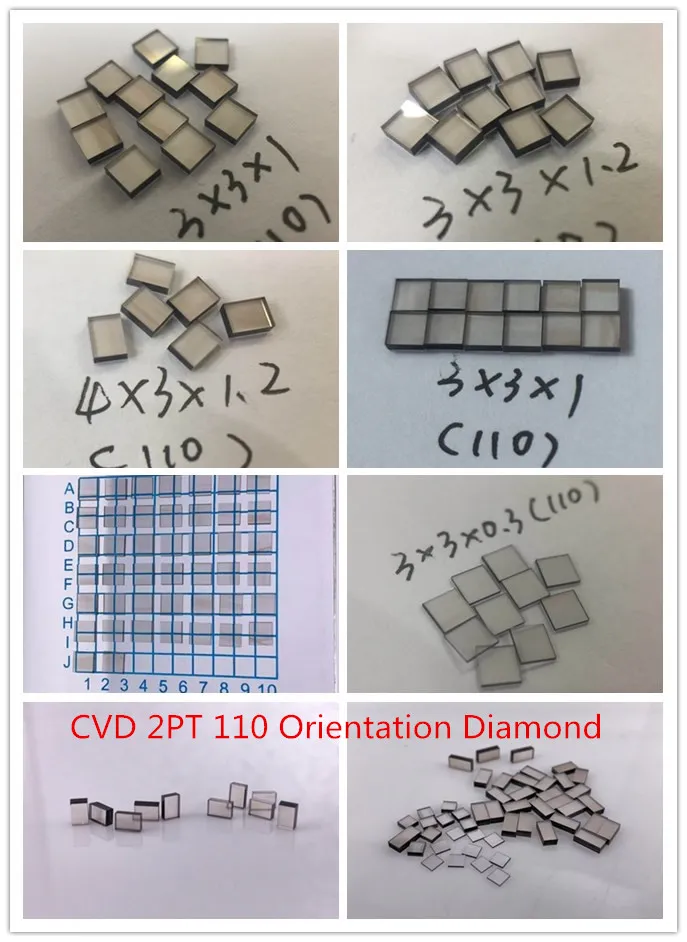

Diamond Plate 4

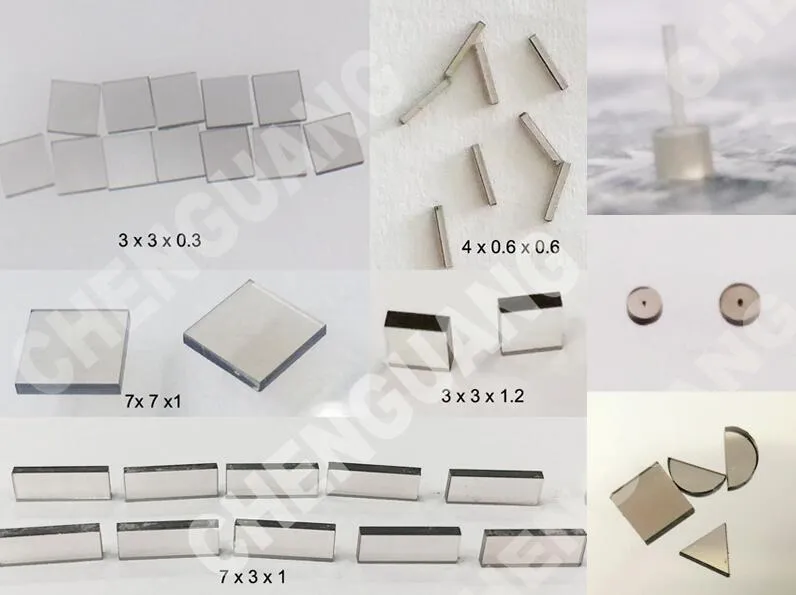

Diamond Plate 5

Frequently Asked Questions

What are the primary applications for these CVD diamonds?
Our CVD diamonds are widely used in optical windows, electronic thermal management, diamond seeds for growth, and high-precision surgical scalpel blades.
What is the quality level of your diamond plates?
We provide high-quality mono CVD diamonds with no visible growth lines, impurities, or cracks under 100x magnification. The stress is optimized for high reuse rates.
Can the size and thickness be customized?
Yes, we offer standard sizes from 7x7mm up to 15x15mm, with thicknesses ranging from 0.1mm to 0.5mm. Custom dimensions are available upon request.
What surface finishes do you provide?
We offer three options: two-sides polished (Ra < 30nm), one-side polished, or both sides unpolished as-grown.
What are the optical properties of the CVD diamond?
Our optical grade diamonds feature wide spectral transparency ranging from Ultraviolet (UV) all the way to Terahertz (THz) frequencies.
What orientations are available for surgical blades?
We primarily provide 100 and 110 orientations, which are ideal for ultra-thin surgical and mechanical applications.
